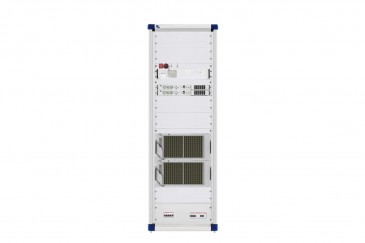

SLIM4000 UHF

Lebih Lengkap Mengenai SLIM4000 UHF

2500/3200 Wrms COFDM, 2800/3500 Wrms ATSC and 5000/6000 W p.s. 11RU solution composed by one driver and two amplifiers. Transmitter, transposer, repeater, gap filler, multimode and multistandard The SLIM5_02_UHF_SD_PCM is the light low power transmitter solution from SLIM Line. High efficiency PPT option availabe. (PPT: registered proprietary mark, patent pending). The overall efficiency of a single final stage is about 42% and the efficiency of the whole transmitter is about 38%. Key facts:

Multimode platform – same hardware: System driver, low power transmitter, heterodyne transposer, regenerative transmitter, translator (integrated DVB-S2 receiver), gapfiller and Single Frequency Echo Canceller
Multistandard Transmitter: All digital / All analog in the same hardware
Output power solution UP to 3200 Wrms / 6000 Wps
2x INPUT= SAT (S2 with CAMSlot), Ethernet, ASI= Hitless switch
Regenerative and SFN Gapfiller functionalty
Freq. agile with static or adaptive pre-correction
BUILT in GPS receiver
Easy to use: web graphic interface GUI response.
Up to several amplifiers housed in one 19” standard rack
The Air Cooled transmitters line = SLIM Line offers air cooled TV transmitters, with one or more amplifier modules.

Slim 5 transmitters are now available in several different amplifier configuration, in order to satisfy all customer requests.
– depending on number of final stages provided each amplifier (Low Power version: 6 Final stages or High Power version: 8 Final stages)
– depending on type of final stage: classic AB amplification class, or high efficiency amplification class (3 sub bands or one broad band final stage; PPT  proprietary technology)
– depending on redundancy over power supplies, with single power supply version,  or with 2+0 or 2+1 plug in power supplies, as the following table summarizes
