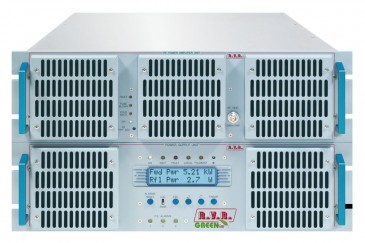

FM Transmitter

FM Transmitter
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai FM Transmitter

PRIMARY APPLICATION: uncompromised high amplification power. Ideal to supplement mid to high power stations.
AMPLIFIER FEATURES: exceptional-gain amplifier with very low input drive power requirement and adjustable power output from 10 to 100 %. Available (optionally) LD “Low Drive” technology which reduces required input drive power to as little as 5W.
HARDWARE FEATURES: easy handling, compact and indeformable thanks to the stainless steel chassis, in 3 rack units each only.
RELIABILITY/CONTINUITY: APC (Automatic Power Control), Foldback protection, redundancy of amplification units and redudancy of power supply units to mantene always on the broadcast transmission, ensure reliable operation under any operating conditions.
OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency forenhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
USER-FRIENDLY FEATURES: configurable both in single and three phase. Five pushbuttons for user/device interaction and software that offers a simple, intuitive interface.
INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
TEASE OF MAINTENANCE: advanced module engineering ensures extreme ease of access and simple maintenance.
REMOTE CONTROL: supplied with telemetry connectors and is compatible with all RVR telemetry systems and other popular transmitter remote control systems.
REGULATORY COMPLIANCE: state-of-the-art technology and design results in equipment that is in full compliance with FCC, CCIR, and EC standards.

Features:

- Output power: Adjustable from 0 to 3500 W
- RF output: 50 Ohm (type N)
- Frequency Range: FCC-CCIR-OIRT-JPN-CHN
- Modulation type: Direct carrier frequency
- Consumption: 5147 W
- Cooling system: Forced with internal fan
- Frequency Programming: From software
