DAVID IV FM/HD Radio Broadcast Processor

DAVID IV FM/HD Radio Broadcast Processor
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai DAVID IV FM/HD Radio Broadcast Processor

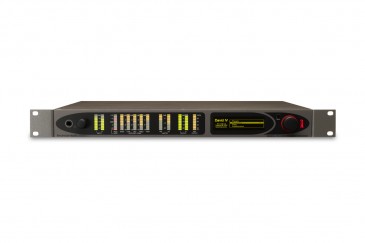

The DAVID IV is the fourth generation processor in our DAVID (vs. Goliath) series of FM and HD Radio air-chain processors. Our streamlined, 100% DSP-based audio engine gives you total leverage over the most important sonic ‘signature’ parameters, while smart controls allow you to enhance program material quickly and effectively. Processing includes 5 bands of dynamics compression with equalization, intelligent gain-riding AGC (Automatic Gain Control), Bass and Stereo Field Enhancements, and our proprietary PIPP™ (Polarity Independent Peak Processing) limiter. The DAVID IV combines a remarkably clean sound with a premium FM Stereo Generator that also includes internal metering with combining for the RDS(RadioData System) subcarrier.

Setup is quick, and operation is intuitive via the multi menu front-panel interface or IP based remote control software, so you can make adjustments from the comfort of your favorite listening environment.

Presets are provided for popular world formats*, and user settings can easily be saved/backed up and shared over station networks. TCP/IP connectivity is virtually automatic and allows full remote control and access from anywhere in the world. Processing and stereo generator aside, the DAVID IV features a rugged closed box design (no fans or heat-sinks needed), with ultra low latency hardware allowing for direct off-air monitoring, and power to live audio in less than 1 second.

But how does it sound? When it comes to audio performance, the DAVID IV really delivers. With tight lows, open mids, crisp but controlled highs, and the dynamic flexibility to really stand out, the DAVID IV’s sound promises results on par with products more than double or triple it’s price class. It has never been easier (or more affordable) to achieve maximum audio performance without breaking the budget. But don’t take our word for it, get one and demo it yourself-30 days risk free!

Features:

Frequency Response:
-Composite/MPX Output: ±0.25dB, 20Hz–15kHz assuming the use of a lab-quality FM-multiplex decoder with the appropriate de-emphasis characteristic.
-L/R Line Outputs:±0.25dB, 20Hz–15kHz through an appropriate de-emphasis network in the FM mode; ±0.25dB, 20Hz–20kHz in the Flat mode.
-AES Digital Output (Digital Input): ±0.25dB, 20Hz –15kHz through an appropriate de-emphasis network in the FM mode; ±0.1dB, 20Hz–20kHz in the Flat mode
Noise (unweighted):
-Composite/MPX Output: SNR >85dB with carrier modulation at maximum output level through an appropriate de-emphasis network.
-L/R Analog Line Outputs: Residual Noise better than 100dB below the output clipping point(through an appropriate de-emphasis network in the FM mode).
-AES digital Output (Digital Input): Residual noise better than 130dB below 0dBFS (through an appropriate de-emphasis network when indicated.
Distortion:
-Composite/MPX Output: <0.01% THD using an appropriate de-emphasis network.
-Line Outputs: <0.06% THD in digital and analog Line Outputs using an appropriate de-emphasis network when indicated.
Stereo Separation:
-Composite/MPX Output: >65dB, 20Hz-15kHz assuming the use of a lab-quality FM-multiplex decoder with the appropriate de-emphasis characteristic. Linear Crosstalk (main/sub or sub/main):.78dB.
-L/R Analog Line Outputs: At 1dB below the output clipping level, >100dB through an appropriate de-emphasis network in the FM mode; unweighted in the Flat mode.
-AES Digital Output:At 0dBFS, >130dB through an appropriate de-emphasis network in the FM mode; unweighted in the Flat mode (using the Digital Line Input).
