HD/SD TFT LCD Monitor
Harga | Rp 1,00 |
Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai HD/SD TFT LCD Monitor

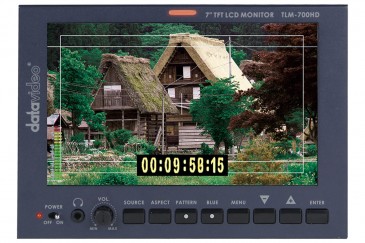

The Datavideo TLM-700HD is a 7 Inch
broadcast monitor with a range of both High definition and standard
definition connections including HD & SD-SDI, HD & SD YUV, HDMI
& Composite Video Inputs. The range of connections and rugged metal
design make it a perfect choice for users who work outdoors in the field
or in a studio, with HD or SD.
The TLM-700HD can be powered from
a standard V-Mount type battery, enabling you to power the monitor
using an existing camera battery from a range of manufacturers. The
TLM-700HD can also be powered via the supplied mains power adapter.
The
monitor provides a range of advanced features including, audio
indicator when working with SDI and HDMI, safe area indicators (80%, 90%
OFF), VITC time code display, auto detection of NTSC/PAL, aspect ratio:
16:9 / 4:3 / 15:9 switchable and dual colour tally indication.
Adjustment for brightness, contrast, colour and tint (Tint NTSC only).
Internal colour bars and Blue only function enables perfect and precise calibration.
Features:
-Display 7"
-Inputs HD/SD-SDI: BNC (x1 Input)
-Component: BNCx3 (x1 Input)
-Composite: BNC (x1 Input)
-HDMI: HDMI (x1 Input)
-Tally: 15-pin DSub (x1 Input)
-Resolution 800 x 480
-Aspect Ratio 16:9
-4:3
-Standard NTSC/PAL
-Power 12VAC or DC
-V-mount with universal battery
