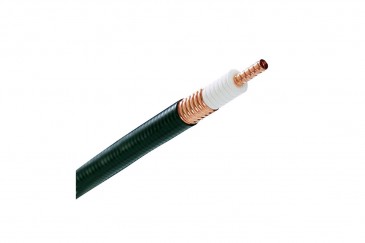

AVA7-50

Lebih Lengkap Mengenai AVA7-50

Features:

Construction Materials
Jacket Material PE
Outer Conductor Material Corrugated copper
Dielectric Material Foam PE
Flexibility Standard
Inner Conductor Material Corrugated copper tube
Jacket Color Black

Dimensions
Nominal Size 1-5/8 in
Cable Weight 0,72 lb/ft | 1,07 kg/m
Diameter Over Dielectric 44,45 mm | 1,75 in
Diameter Over Jacket 51,054 mm | 2,01 in
Inner Conductor OD 18,161 mm | 0,715 in
Outer Conductor OD 46,355 mm | 1,825 in

Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 22 pF/ft | 72,2 pF/m
dc Resistance, Inner Conductor 0,41 ohms/kft | 1,435 ohms/km
dc Resistance, Outer Conductor 0,16 ohms/kft | 0,525 ohms/km
dc Test Voltage 15000 V
Inductance 0,187 µH/m | 0,057 µH/ft
Insulation Resistance 100000 Mohms•km
Jacket Spark Test Voltage (rms) 10000 V
Operating Frequency Band 1 – 2700 MHz
Peak Power 302 kW
Velocity 92%

Environmental Specifications
Installation Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -70 °C to +85 °C (-94 °F to +185 °F)

General Specifications
Brand HELIAX®
Ordering Note CommScope® standard product in Asia Pacific | CommScope® standard product in Europe, the Middle East, and Africa | CommScope® standard product in Mexico, Central America, and South America | CommScope® standard product in the United States and Canada

Mechanical Specifications
Bending Moment 47,5 N-m | 35 ft lb
Flat Plate Crush Strength 90 lb/in | 1,6 kg/mm
Minimum Bend Radius, Multiple Bends 381 mm | 15 in
Minimum Bend Radius, Single Bend 203,2 mm | 8 in
Number of Bends, minimum 15
Number of Bends, typical 50
Tensile Strength 181 kg | 400 lb

Note
Performance Note Values typical, unless otherwise stated

Standard Conditions
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Return Loss/VSWR
Frequency Band VSWR Return Loss (dB)
680–800 MHz 1,13 24,3
806–960 MHz 1,13 24,3
1700–2170 MHz 1,13 24,3
