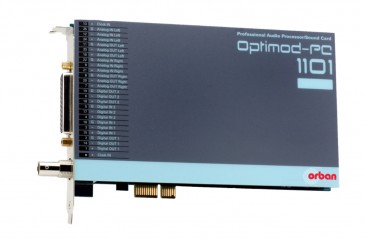

OPTIMOD-PC 1101e
Harga | Rp 1,00 |
Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai OPTIMOD-PC 1101e
PCIe card for Windows® 2003, 2008, XP Pro, Vista and 7/8.CBS Loudness Controller™ and Loudness Meter™ included. The 1101e is dialnorm-aware, allowing easy incorporation into Dolby Digital™ transmission paths. The 1101e is also a high-quality sound card with analog I/O, AES/EBU digital output and two mixing AES/EBU digital inputs, either of which can receive sync. Includes WAVE drivers that allow the card to send and receive WAVE streams from the host computer and to mix these with the external analog and digital inputs. The 1101e can be configured as 2 sound devices, ideal for ad insertion. Multiple cards can be installed in host computer, limited only by CPU resources and the number of available PCIe slots. It readily drives streaming encoders running on the host. Includes PCIe card, application software, and user documentation. Internal sample rate: 48 kHz.
Features:
-Frequency Response: ±0.1dB, 2-20,000Hz (Bypass software running).
-Input/Output
Delay: Adjustable from 25 ms to 62 ms in 1 ms steps. Presets available
for one frame of: 30 fps (33.33ms), 29.97 fps (NTSC color video;
33.37ms), 25 fps (most PAL video; 40ms), and 24 fps (film; 41.67ms).
"Minimum" delay is also available; this delay will vary according to the
processing structure in use and crossover mode settings.
-Internal
Filters: 10, 11, 12, 13, 14, 15, and 20kHz can be used to provide
additional anti-aliasing for low sample rate services, such as Internet
Streaming Encoders, Eureka-147 (24kHz mode), iBiquity HD-AM (32kHz) and
Digital Radio Mondiale.
Internal Sample Rate: 48kHz.
-Wave Sample Rate: 8-96kHz.
-Internal Resolution: 24-bit fixed point (3 x Freescale DSP56367).
-Input/Output Resolution: 24-bit.
-Peak
Control Accuracy: If output samples are synchronous with internal
samples, maximum overshoot of any output sample is 0.1dB. This is true
at 48kHz output sample rate. If sample rate conversion after internal
processing makes output samples asynchronous with internal samples,
output samples can overshoot as much as 1dB (0.3dB typical).
-Phase Response: All processing is linear-phase (constant group delay).
-AGC (Automatic Gain Control): ±12dB/24dB gain range, Two-Band, Gate and Window enabled.
-Stereo Enhancer: Two styles available: (1) Orban-patented L-R dynamic expansion triggered by L+R transients; (2) L-R delay.
-Equalizers: Shelving
Low Bass EQ, selectable 6 dB, 12dB or 18dB/octave. Three-band
Parametric EQ with analog-style bell-shaped curves. Program Adaptive HF
Enhancer.
-Multiband Compressors: -24dB gain range, Five-Band and Two-Band, selectable by mute-free crossfade.
-Limiter: -12dB
gain range, Look-ahead IM distortion reduced, competitive with the best
dedicated mastering limiters, achieving high loudness with a remarkable
lack of side-effects.
