Stereo Isolation Transformer

Stereo Isolation Transformer
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Stereo Isolation Transformer

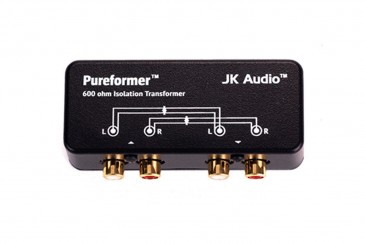

The Pureformer from JK Audio is a stereo audio interface that employs transformers to provide hum and noise reduction for any two pieces of line level audio equipment. The unit removes ground loops and DC paths that can cause severe signal degradation.

The Pureformer functions by isolating the electrical grounds of both pieces of equipment, allowing only the audio signal to pass between them. This is especially crucial when one of the pieces of equipment is a computer sound card, where the electrical noise from the computer can get into the rest of the audio system.

The unit is also useful in the event that two pieces of equipment are DC coupled. If both input and output are DC coupled, the signal can easily distort, break-up, or simply disappear. The Pureformer safely isolates any combination of AC and DC coupled inputs and outputs.

Features:

-Line In RCA
-Impedance 600 ohms
-Level 250 mV RMS (-10 dBu nom)
-Line Out RCA
-Impedance 600 ohms
-Level 250 mV RMS (-10 dBu nom)
-Frequency Response 20 Hz-20 kHz, ± 0.1 dB
-Insertion Loss 0.8 dB
