Mobile FM Radio Analyzer

Lebih Lengkap Mengenai Mobile FM Radio Analyzer

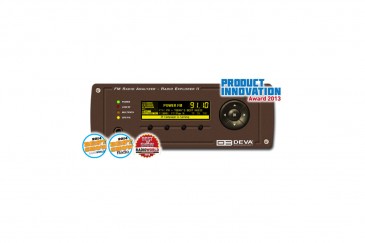

The Radio Explorer II is a full-featured device designed to cater for all market requirements. This easy for use mobile tool evaluates the FM broadcast band congestion and stores all important radio broadcast parameters in a Log file. The built-in FTP system allows downloading and managing of the files through DEVA Device Manager Software. The fully DSP- based FM radio frontend tuner utilizes the latest technologies in the DSP processing of the FM signal.

The Dual DSP-based, compact and affordable Radio Explorer II is a product of highly valued performance. This device is the perfect solution for field surveys and on site monitoring of station complete signal.With just a click on the button, Radio Explorer turns into an excellent tool for analyzing of the signal strength and quality after repairs or set-up of new equipment.

Features:

Built-in Stereo decoder
Stereo Presence Detection
LEFT and RIGHT demodulated audio level meters
RDS and RBDS decoder
RDS/RBDS Stream BER meter
Powerful Dual DSP-based core
Built-in 50-channels GPS Receiver
Front panel OLED Graphical Display

Very Intuitive Application Interface
SNMP for adjustments and control
Full control and monitoring via LAN & USB connection
Easy to use WEB Interface
Maintenance via DEVA Device Manager Software
Measurement results visualisation in Google Earth
Accurate front-panel metering for local use
Headphone output with front panel level control
RF and RDS Measurements (real time & average)
FM/RDS/RBDS Data Logger
3 General purpose outputs – GPS Fix, Multipath, Low RF Level
Built-in FTP Server for easy download of the Log files
Robust, custom made Metal Case for high RF immunity
