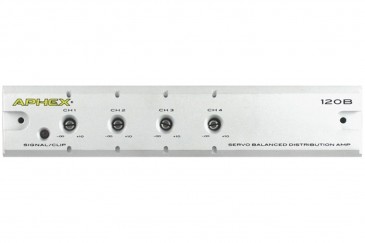

APHEX Servo balanced audio distribution amplifier

APHEX Servo balanced audio distribution amplifier
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai APHEX Servo balanced audio distribution amplifier

Model 120B is a high performance audio distribution amplifier with a single high impedance input and four low impedance outputs, all electronically servo-balanced and designed to be as transparent as possible. The 120's transformerless circuits are designed for wide, flat frequency response, free from ringing or overshoot, making it ideal for distribution of time code or audio. Each output has its own amplifier and level control for maximum versatility and isolation. The sturdy steel chassis may be used stand-alone or rackmounted, singly or in pairs.

The input circuit is adjusted for optimal common-mode rejection. Servo-balancing compensates for high common-mode voltages, so headroom isn't sacrificed. The high input impedance allows bridging of the input signal with minimum loading. This way several amplifiers can be easily driven from the source.

The individual output amplifiers are very low impedance so long lines and capacitive loads are easily driven with no loss of stability or high frequency response. Servo-balancing permits the outputs to be used single-ended at any time without a change in gain by simply grounding the unused pin. Individual output level controls are recessed for bump-proof operation, yet can be easily adjusted without tools. The front panel power LED also acts as a signal present and clip indicator for the input.

Features:

-Frequency Response 5Hz - 100 kHz (+0, -0.5dB)
-Dynamic Range 94 dB
-Hum and Noise Better than -90 dBm at unity gain
-THD 0.002% @ +4dBm, 0.005% @ +20dBm
-IMD 0.002% @ +10dBm
-Channel Isolation 70dB
-Slew Rate 13 V/usec
