Digital Pocketstudio

Lebih Lengkap Mengenai Digital Pocketstudio

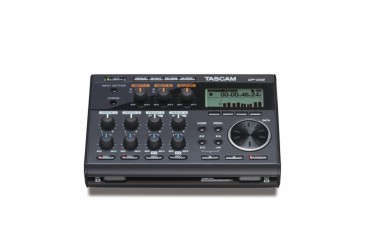

The DP-006 6-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two unbalanced 1/4" TS line inputs can be used to record mic, line or Hi-Z instrument signals. Designed with analog functionality and dedicated control knobs, the DP-006 is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.

The DP-006 provides an 1/8" stereo line output as well as an 1/8" stereo headphone output. An integrated chromatic tuner and metronome help you perfect your performance. For elongated battery life, the DP-006 is compatible with Tascam's BP-6AA external battery pack. The DP-006 was designed with a tripod mount for versatile set-up and placement. The DP-006 features an ultra lightweight—less than 13 oz —design to ensure portability.

The DP-006 records WAV files to SD/SDHC cards up to 32GB, a 2GB card is included. High-speed data transfer is available through the onboard USB 2.0 port. Your files can then be imported to your favorite DAW.

The DP-006 can record 2 mono tracks or 1 stereo track simultaneously. It offers up to 6 tracks of simultaneous playback.

Features:

-Connector 2 x 1/4" TS unbalanced
-Input Impedances Switchable:
-≥ 10kΩ mic/line
-1MΩ guitar
-Nominal Input Level -10 dBV
-Maximum Input Level +6 dBV
-Headroom 16 dB
-Connector 1/8" (3.5 mm) stereo mini
-Nominal Output Level -16 dBV
-Maximum Output Level 0 dBV
-Frequency Response 20 Hz to 20 kHz +1/-3 dB-
-Distortion < 0.05%
-Signal-to-Noise Ratio > 81 dB
-Power Requirements 4 x AA batteries (alkaline or NiMH)
-TASCAM PS-P520 AC adapter (sold separately)
-Battery Life (approx.) 8 hrs alkaline, 9 hrs NiMH (using line input/recording)
-8.5 hrs alkaline, 9.5 NiMH (using headphone/playback)
-Power Consumption 1W maximum
-Operating Temperature Range 41 to 95°F (5 to 35°C)
