4K XDCAM Super 35mm Camcorder

Lebih Lengkap Mengenai 4K XDCAM Super 35mm Camcorder

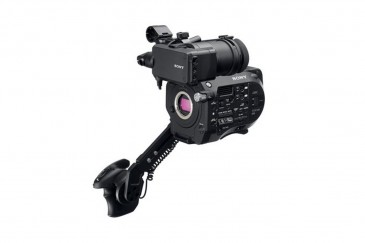

Designed as a camera that is at home on productions as diverse as "Cinéma Vérité"-style documentaries, reality TV, commercial and corporate applications Sony's PXW-FS7 XDCAM Super 35 Camera System is a flexible 4K camera system. It features a Super 35mm size sensor that allows you to capture images with cinematic depth of field. The camera's E-mount is machined from stainless steel and allows you to use E-mount lenses or with the use of optional adapters to accept most 35mm lenses including PL, EF, Leica, and Nikon. The camera can capture footage to optional on-board XQD media cards in either DCI (4096 x 2160), UHD (3840 x 2160) at up to 60 FPS or HD at up to 180 FPS.

The camera records in your choice of XAVC-I, XAVC-L, or MPEG-2. However, MPEG-2 recording does not support the high data rates the camera is capable of generating when shooting in UHD, and is limited to recording HD video only. The camera incorporates Dual XQD media card slots that support simultaneous or relay recording. An ergonomically designed handgrip provides control of many of the camera's functions and features an adjustable length support arm.

To use the the faster XQD-G-E cards requires an update to firmware 4.00 available from the Sony website. The Firmware 2.0 update is installed on the camera, it is a free download and user install for camera owners who do not already have it installed in their camera.

Features:

-Effective Picture Elements 11.6 MillionTTL 8.9 in 4K; 8.3 Million in UHD snd HD
-Gain -3, 0, 3, 6, 9, 12, 18 dB, AGC
-Imaging Device Super35mm Progressive Scan EXMO Sensor
-Minimum Illumination 0.7 lx (+18 dB, 23.98p, Shutter OFF, ND Clear, F1.4)
-Optical System Bayer
-S/N Ratio 57 dB (Y) (typical)
-Sensitivity (2000 lx, 89.9% reflectance) T14 under the following conditions: Video Gamma, 3840 x 2160; 23.98p mode 3200K
-Shutter Speed (Time) 1/3 sec to 1/9,000 sec
-Slow Shutter Up to 1//3 of a second
-White Balance Preset, Memory A, Memory B & ATW (1500K-50000K)
-Operating Temperature 32°F to 104°F (0°C to 40°C)
-Power Consumption Approx. 19 W (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)
-Power Requirements DC 12 V
-Audio Input MI Shoe plus XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -40, -50, -60 dB
-Audio Output Headphone Stereo mini jack (x1) -16 dBu 16 Ω
-Composite Output Via SDI or HDMI connectors
-DC Input DC Jack with camera body or 4-pin XLR when optional XDCA-FS7 is used.
-DC Output 4-pin Hirose when optional XDCA-FS7 is used.
-Genlock Input With optional EXCA-FS7 (H phase adjustment is possible)
-HDMI Output Type A (10-bit 4:2:2 HD all frame rates and UHD up to 30fps. Above 30fps UHD HDMI out is 8-bit 4:2)
-Headphone Output Stereo mini jack (x1) -16 dBu 16 Ω
-Lens Remote By included SmartGrip, Externally via LANC or WiFi remote
-MIC Bulit in: Monoaural Omnidirectional Electret Condenser Microhone
-Remote RMt845 IR remote and WiFi
-SDI Output BNC (x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M
-Speaker Output Monaural
-Timecode Input BNC when optional XDCA-FS7 is used (no looping)
-Timecode Output BNC when optional XDCA-FS7 is used.
-USB USB device, mini-B (x1)
-VF 8.8 cm (3.5 type) Approx. 1.56M dots
-Video Output BNC (x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M
