Digital Portastudio 8-Track Recorder

Lebih Lengkap Mengenai Digital Portastudio 8-Track Recorder

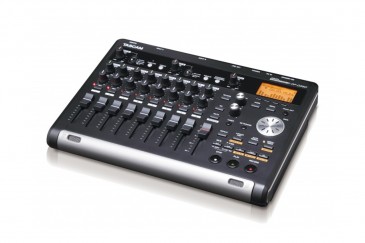

The DP-03SD is an affordable way to get into TASCAM's famed Portastudio system of making recording simple and affordable for musicians. The 8-track digital recorder captures your music at CD quality to affordable SD/SDHC cards, and a 4GB card is included with the recorder. With built-in microphones, effects, and mastering, the DP-03SD provides everything musicians need to record and share their music.

A pair of stereo condenser microphones is built into the front panel of the DP-03, helpful for capturing a rehearsal, live performance or songwriting ideas. Also included are a pair of high-quality XLR microphone preamps with phantom power for condenser microphones. 1/4” line inputs are also available, and an instrument-level switch allows you to record a guitar or bass without a direct box. A three-button footswitch, the RC-3F, is available for control and punch in.

Routing the inputs to one of the eight tracks is simple, and you can record two at a time until you fill up all eight. A tuner and metronome are built-in for tight-sounding tracks, each with its own dedicated button for quick access. Track can be edited with commands like copy/paste, silence, clone track and undo. Bouncing is also available, even bouncing all eight tracks down to one or two. There’s even the option to import a WAV file through USB.

Each track has its own send to a stereo reverb processor as well as two-band shelving EQ. Once you’ve perfected your mix with the 45mm faders, pan knobs, reverb and EQ, record it to the dedicated stereo master track. Your mix can be processed with mastering effects like EQ and limiting for a tight, modern sound. When you’re satisfied, transfer your mix to a computer over USB 2.0.

Features:

-Equalizer Hi: +/-12 dB, 1.7 kHz to 18 kHz
-Lo: +/-12 dB, 32 Hz to 1.6 kHz
-Reverb Presets: Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2
-Compressor Controls: Threshold, Ratio, Level
-Multiband Presets: 9
-Single-Band Presets: 4
-Normalize This function detects the highest volume level and raises the overall volume until the highest level reaches the maximum limit
-Metronome Tempo: 20 to 250 BPM
-Beat: 1 to 12
-Tuner Chromatic Mode: C3 to B5 -
-Oscillator Mode: C3 to B5, 435 to 445 Hz
-Frequency Response 20 Hz to 20 kHz +1/-3 dB (Input to Line Output)
-Signal to Noise Ratio 90 dB or more (Input to Line Output)
-Distortion 0.01％ or less (Input to Line Output)
-Power Dedicated AC adapter (TASCAM PS-1225L, included)
-Power Consumption 10 W (when phantom power supplying)
