Web-based remote control of equipment with 16-SS relays

Web-based remote control of equipment with 16-SS relays

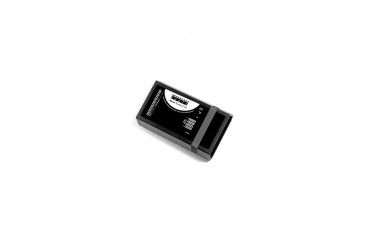

Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Web-based remote control of equipment with 16-SS relays

The Relay Sentinel® 16 is the fastest, easiest, least expensive, and most reliable way to remotely control and/or monitor equipment over any IP network including private networks, IP-based industrial control networks, and the Internet.

The Relay Sentinel® 16 is equipped with sixteen high-voltage, high-current Darlington transistor arrays (solid state relays) that can individually switch up to 500ma at 50 volts DC.

Each solid state relay can be turned on, off, pulsed or timed latched using the built in web pages. Users can operate the product using a web browser or web-enabled mobile device, while email notification may be configured to alert up to eight recipients when alarms are detected.

The user may also enable a sound effect to play when an alarm is generated.

Logging of system status, along with the site ID may be emailed in time spans from once an hour to once a day. We have also provided SNMP capabilities to allow multiple units to be monitored with any SMNP manager software package.

SMTP username and passwords are also supported. The Relay Sentinel® 16 may be paired with the Status Sentinel® 16 to form a “16 channel Relay Extension Cord”.

Features:

- 16 channel high-voltage, high-current Darlington transistor array. The output devices consist of 16 npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads (may be disabled). The collector-current rating of each Darlington pair is 500mA at 50 volts DC.
- Plug-in euro-block screw terminals for all SS relay outputs.
- Rear panel RJ-45, 10/100base-T LAN/Ethernet interface.
- Fully RFI proofed.
- Surge protected power supply. Domestic supply provided.
- Four units may be mounted on one RA-1 1-RU shelf.
