HD/SD PTZ Video Camera with HDBaseT Technology

HD/SD PTZ Video Camera with HDBaseT Technology
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai HD/SD PTZ Video Camera with HDBaseT Technology

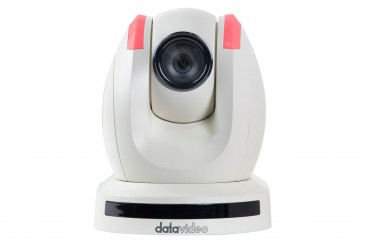

The PTC-150TW HD/SD Video Camera is a PTZ camera that can be mounted on a wall, ceiling, floor, or a tabletop.

The camera is equipped with HDBaseT Technology (HBT-11 Receiver Included) for remote control purpose, video image conveyance, power transmission and Ethernet connection.

The camera captures HD video at 1920 x 1080 resolution and features wide dynamic range with backlight compensation. The camera features a motorized 30x optical zoom capability and its image mirror and image rotation functions allow you to electronically adjust the image and deliver a correctly orientated image. In addition to the basic camera functions, the PTC-150TW also has a receiver box that allows the user to control the camera at a remote location with just one Ethernet cable.

50 programmable presets including pan, tilt, and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote, or an available PTZ controller.

For multi camera shoots, the built in tally light can identify active camera. The camera features a built in IR cut filter in the image path for low light shooting and
then returns for daytime shooting. Also, PTC-150TW supports real time position report on a per frame basis; this is helpful in a virtual studio application.

Features:

-Video Outputs
1 x HD/SD-SDI
1 x CVBS
1 x HDMI (V1.3)
-Output Level 1 V p-p, 75 ohms
-Image Pickup Element 1/2.8" type progressive scan Sony CMOS sensor
-Effective Picture Elements Approx. 2.14 MP
-Resolution HD / FHD / SD (CVBS only)
-Supported Formats HDMI & SDI: 1080/59.94p (4:1:1), 1080/59.94i, 1080/29.97p, 720/59.94p 1080/50p (4:1:1), 1080/50i, 1080/25p, 720/50p
-CVBS: 480i/576i
-S/N Ratio 50 dB
-Minimum Illumination Color: 0.4 lx (f/1.6, 1/30 sec, 50 IRE, high gain)
-Black / White : 0.03 lx (f/1.6, 1/30 sec, 50 IRE, high gain)
-Electric Shutter 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000, 1/2000 sec
-Electronic Sensitivity UP 0 - 128x
-Gamma Off, AUTO, Smart-1, Smart-2, Smart-3
-Iris Control Auto / manual
-Digital Noise Reduction (DNR) On / off
