Console all-in-one

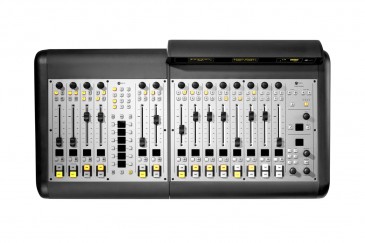

The iQ console + routing system is an all-in-one system that can be used to build custom consoles of sizes from 8 to 24 faders. The basic system consists of one 8 Fader iQ Main Frame (P/N 2001-00275) and one iQ Core integrated console engine (P/N 2001-00275), which includes a DSP based mixing engine, audio I/O, machine-control logic and Ethernet switch.

Faders and control capabilities can be expanded by adding one or more of the iQ Expansion Frames described below. The iQ control surface plugs into the iQ Core using a single CANBus connector; the system can operate as a standalone console or (using one of two Gigabit ports on the Core’s Ethernet switch) as part of a larger Axia network. Up to 4 iQ Cores may be daisy chained without the need for an external Ethernet switch. 3 dedicated stereo Program buses, plus a stereo Utility bus that can be used for phone calls, off-air recording, or as a fourth Program bus. iQ Core iQ Core console engine provides 4 mic inputs, 16 Analog inputs, 8 Analog outputs, 2 AES/EBU ins/outs, 4 GPIO, Ethernet switch with 6 Livewire 100Base-T ports (4 with PoE), 2 Gigabit ports (RJ-45 & SFP). I/O can be easily expanded using Axia Audio Nodes (see Section 5). 4 CANBus connectors support consoles of up to 24 faders or three console frames, plus accessory panels.
