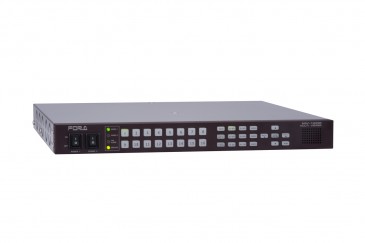

3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer

3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer

Supports mixed signals including: 3G-SDI (Level-A/B), HD-SDI, SD-SDI, Composite, HDMI, or DVI sources. Asynchronous input is also supported. The multi viewer accepts an array of formats and frame rates including NTSC, PAL, 1080/59.94i, 1080/50i, and 30/29.97/25/24/23.98p or PsF. (No frame rate conversion)

Combine optional input cards, MV-12SDI (3G/HD/SD-SDI, Composite x 4), MV-12PCI (DVI/HDMI x 4), or the MV-12IF interface card (GPIO, serial control, LTC input, genlock), as needed.

Customize layouts, using the software in Windows to adjust image size, position, title display, and other settings. Up to 16 preset patterns each for 4K/2K modes can be stored. Recall saved layouts directly from the front panel control.

Features:

-Flashing borders or error icons/messages to identify screens with errors
-Tally, Title, and Timecode
-Time of day, Timer, and Information Display
-View error logs or user text in the Information Display.
-Logo/Background
-Input Lock enables genlock without using reference signals.
-Can display time based on a 30-hour clock.
-Register up to 24 schedule timers per day for 1 week.
-Cropping
-Detects frozen frames. (Y/C and Y only)
