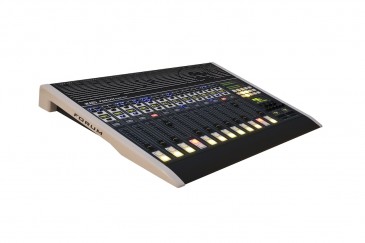

12 Fader On-Air Digital Console
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 12 Fader On-Air Digital Console
AEQ’s FORUM is a self-contained digital
audio mixing console specifically designed to meet the most rigorous
demands of radio and television ON-AIR broadcasting. Its flexible design
allows it to readily be adapted to any ON-AIR application. FORUM
incorporates all of the features necessary for use in environments
requiring: automatic monitor speaker cut-off, cough muting, fader start,
control signaling, interface signaling for automation of external
equipment, external communications management, intercom, etc.
Thanks
to its well thought, self-contained modular design and reduced
footprint, FORUM adapts perfectly to any environment: auto-control,
studio control, television production, sound production, mixed
configurations, integration in large installations, etc.
Simplicity
and control power are combined into the FORUM to satisfy ease of
operation - from the most basic to the most advanced requirements. The
control surface can be configured with a minimum of 4 faders, and easily
expanded to 8 or even 12 channels witht he standard chassis. If you opt
for the GRAND FORUM Chassis, the mixer can expand to up to 20 freely
assignable fader channels.
Features:
• 14 Slot Capacity
• 2 Precision VU Meters
• 15 Programmable Soft Keys
• 1 OLED Multifunction Configuration / Control Display w/ Rotary Encoders & LED Illuminated Select Buttons
• 2 OLED Studio & Control Room Monitoring Displays w/ Rotary Encoders & LED Illuminated Select Buttons
• 4 Push-To-Talk Buttons For Direct Intercom
•
Each Fader Has: Fader Start On All Channels, 4 Routing Buttons, 1 OLED
For Channel Name, Balance, Pan, Status, Level Display, 1 CUE
• button, 1 BALance, 1 EQualization, 1 DYNamics, & 1 GAIN LED Indicator, 1 ON-AIR Indicator, 2 Activation Buttons
• 100 mm Smooth Operation Faders
• Cough Muting
• N-1 Output Configuration
• Clock, Timer & Stopwatch
• Selectable Boot-Up: Last Used or Factory Default
• Test Tone Generator
• 64 x 64 Channel Internal Routing & Gain
• 64 x 64 Channel External Routing Via Optional MADI
• 48 KHz 24 Bit Operation
• 20 Stereo Channel Processing: 3 Band EQ, HP 7 LP Filters, Comp/Lim, & Noise Gate
• 1 CUE Speaker
• 8 General Purpose Signaling Inputs
• 8 General Purpose Signaling Outputs
• 4 Relay Contact Signaling Outputs
• 2 RJ-45 10/100 TCP/IP Ethernet Ports
• 1 RJ-45 External Time Sync Port
• 2 TRS Headphone Jacks
• 1 XLR Jack Selectable As Talk-Back Mic or Line w/48V Phantom Power
• 2 Stereo Line Level Output DB-9 Ports
• 90-240 VAC
• 50/60 Hz Auto-Ranging High Capacity External Power Supply
• Configuration & Real Time Control Software
