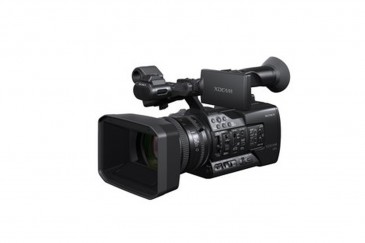

XDCAM XAVC HD422 hand-held camcorder.

Lebih Lengkap Mengenai XDCAM XAVC HD422 hand-held camcorder.

Ideal for professional broadcast, documentary or live event video applications, the PXW-X180 XDCAM HD422 camcorder offers a 25x HD zoom lens, three 1/3"-type Exmor CMOS sensors for high resolution, low noise and wide dynamic range, and a variable Neutral Density filter which provides more flexibility in density control and a broader range of shooting techniques. By using the wireless function, the camera connection is broadened to other destinations for sharing content by transfering files.

In addition, a live streaming feature is available via cellular connection, Wi-Fi, and ethernet*. The camcorder has a new type of Multi-Interface (MI) Shoe where compatible accessories attached to the MI shoe can be controlled from the PXW-X180. The new HVL-LBPC video LED light can be attached which enables controlling the light ON and OFF syncing with recording START and STOP. Also, if an optional UWP-D wireless microphone receiver is connected with use of the optional adapter SMAD-P3, power supply and cable-free audio signal input are possible, minimizing the need for extra batteries and removing the need for additional cabling. *A firmware version upgrade is required to activate these functions.

The PXW-X180 incorporates three 1/3"-type Full-HD Exmor CMOS sensors to achieve high resolution, high sensitivity, low noise, and wide dynamic range. The sensor has 2 million effective pixels and achieves full HD 1920 x 1080 shooting without pixel interpolation, enhancing shooting under severe lighting conditions and providing more freedom of creative expression.

The PXW-X180 is equipped with a G Series fixed 25x optical zoom lens with 26mm wide-angle. Due to a quick electric zoom function, the change of shooting from wide-angle to tele-angle can be made quickly. The lens has three independent control rings with end-stop, which means focus, zoom and iris can be manually controlled, making for better and faster adjustment.

The PXW-X180 is equipped with a variable ND Filter function, allowing you to choose either four conventional mechanical ND filter positions or the linear control dial, or automatically adjust the proper level of density(*). The optical filter changes the density electrically, allowing the light amount to be reduced more conveniently. The density can be changed gradually and fluidly. Different from conventional optical ND filters, the ND filter on the PXW-X180 can be controlled from 1/4ND to 1/128ND linearly. By choosing the density value properly, the iris control has more flexibility.

The PXW-X180 supports not only MPEG HD 422 50 Mbps in MXF (Material eXchange Format), which is widely accepted by major broadcasters worldwide, but also XAVC Intra and XAVC Long GOP codecs. XAVC technology is based on the H.264 standard, which provides an exceptional performance compression technology. XAVC Intra (frame) compression means that every frame is encoded independent of the other framesz providing a better quality picture, without compromises. With a Long GOP codec, only certain frames are encoded individually. This allows the codec to squeeze the video into a much smaller bitrate than Intra technology. The main benefit is faster ingest and editing.

XAVC Long GOP files also require less storage space than XAVC Intra files, providing budget savings on recording media. The XAVC codec adopts 10 bit sampling for high definition recording with rich tonal expression. The bite rate of XAVC recording is 111 or 112 Mbps at 1080/59.94i or 50i and 89, or 112 Mbps at 1080/23.98P or 25p. The high bit rate gives a better quality picture.

The camera uses Sony's unique QoS (Quality of Service) technology to maintain video and audio integrity during transmission. Packet loss during streaming can degrade image quality, cause image freezing and disrupt the audio. The combination with the camera and the sold separate station PWS-100RX1 comes with original Sony algorithms that automatically adjust bandwidths and buffer sizes to match the characteristics of the wireless transmission. Users can be confident of high-quality streaming without concerning themselves with bandwidth settings and other technical issues. In particular, the Sony's QoS live streaming technology includes Real-time ARQ (automatic repeat request), adaptive rate control (ARC) and forward error correction (FEC).

This 0.5-inch type OLED viewfinder has the incredible clarity of 1024 x 768 pixels, plus superb OLED brightness, contrast and response. The high resolution of the viewfinder allows better precision of manual focus operations and eliminates any colour-breaking phenomenon. The 3.5” type QHD LCD panel provides easy viewing in a wide range of lightning conditions.

The PXW-X180 is equipped with a Multi Interface Shoe (MI Shoe) that has an electric interface in its mechanical attachment allowing the camcorder to communicate with an attached accessory. For example, the audio signal from a UWP-D11 or UWP-D12 wireless microphone package can be input from the wireless microphone receiver to the PXW-X180 without an XLR cable. The power can be supplied from the PXW-X180 to the receiver and a battery is not required for the receiver operation.

Features:

-Effective Picture Elements 1920 (H) x 1080 (V)
-Gain -3, 0, 3, 6, 9, 12, 15, 18 dB, AGC
-Horizontal Resolution 1,000 TV lines or more (1920 x 1080i mode)
-Imaging Device 3-chip 1/3"-type Exmor Full HD CMOS
-Minimum Illumination 0.12lx (typical, 1920 x 1080/59.94i mode, F1.6, +18 dB gain, with 16 frame accumulation, Gamma off, 100% video level)
-0.02lx (typical, 1920 x 1080/59.94i mode, F1.6, +18 dB gain, with 16 frame accumulation, Gamma off, 50% video level)
-Optical System F1.6 prism system
-S/N Ratio 60 dB (Y) (typical)
-Sensitivity (2000 lx, 89.9% reflectance) F9 (typical) (1920 x 1080/59.94i mode)
-F10 (typical) (1920 x 1080/50i mode)
-Shutter Speed (Time) 1/32 to 1/2000 sec.
-Operating Temperature 32°F to 104°F (0°C to 40°C)
-Power Consumption approx. 19.9W (while recording with LCD Off, EVF On when the external device connector is not used.)
-approx. 20.8W (while recording with LCD On, EVF On when the external device connector is used.)
-Power Requirements DC 14.4V (battery pack)
-DC 19.5V (AC adaptor)
-Audio Input XLR type 3-pin (2), female, LINE/MIC/MIC+48V switchable; - MIC: -50 dBu/3 kΩ; - LINE: +4 dBu/10 kΩ; (Reference input level 0 dBu=0.775Vrms)
-Audio Output Stereo minijack (Ø 3.5 mm); -10 dBu (Under 47 kΩ load, reference level)
-DC Input DC jack (1)
-DC Output No
-EXT 50-pin No
-Genlock Input BNC type (1), switchable with VIDEO OUT connector; 1.0 Vp-p, 75 Ω
-HDMI Output HDMI connector - Type A (1)
-Headphone Output Stereo minijack (Ø 3.5 mm) -19 dBu (Reference level output under 16 Ω load)
-MIC Omnidirectional stereo electret condenser microphone
-Remote Stereo mini-mini jack 2.5mm (1)
-SDI Output BNC type (1), switchable with 3G SDI/HD-SDI/SD-SDI
-SMPTE292M/259M/424M/425M standards
-Speaker Output Monaural, 50 mW
-Timecode Input BNC type (1), switchable with TC OUT connector; SMPTE 12M-2-2008; 0.5 V to 18 Vp-p, 3.3 kΩ
-Timecode Output BNC type (1), switchable with TC IN connector SMPTE 12M-2-2008 2.0 Vp-p, 50 Ω
-USB Mass storage: USB2.0 mini-B (1); Host: Type A USB3.0 (1) supported by future software upgrade; Host: Type-A USB2.0 (1) to use with supplied wireless LAN module
-Video Output BNC type (1), HD-Y/HDSYNC/composite signal, 1.0Vp-p, 75Ω
-switchable with GENLOCK IN connector
-i.LINK No
-Filter Diameter M 82 mm (3 1/4 in.), pitch 0.75 mm
-Focal Length 3.7 mm to 92.5 mm (5/32 to 3 3/4 in.) (equivalent to 26 mm to 650 mm (1 1/16 to 25 5/8 in.) on a 35 mm lens)
-Focus AF / MF selectable.
-Iris F1.6-3.2; F1.6 to F11 and C (close); Auto/manual switchable
-Lens Mount fixed lens
-Zoom System 25x optical zoom
