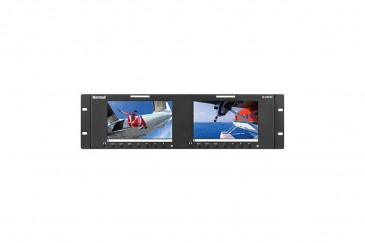

The Marshall Electronics M-LYNX-702 Dual 7" 3G-SDI Rackmount Monitor features two 7" LCD displays with 1024 x 600 resolution each housed in a single, 3RU rackmoutable non-tilting frame. It features 3G-SDI, HDMI, and analog connectivity for both HD and SD video sources. It is designed to be used in a multitude of production, surveillance, or industrial applications. Possible applications include fly-packs, control rooms, routing rooms, live switching, or anywhere else individual video feeds require their own dedicated monitor.

The LCD panels in the M-LYNX-702 have a 250 cd/m² brightness, a 700:1 contrast ratio, and a viewing angle of 150°°. With a 1024 x 600 resolution, they feature a native aspect ratio of 16:9.

Each display in the M-LYNX-702 features a 3G-SDI input with loop-out, an HDMI input, a component input with loop-out, a composite input with loop-out, and a stereo analog audio input. In addition, there is a headphone jack on the front panel below each display for local audio monitoring. Finally, a GPI port allows the display to be connected to tally systems as well as wired remote controls.

The M-LYNX-702 is designed for installation in standard 19" racks, and has a rack height of 3RU. It includes a 12V power supply and can also be powered from 7 to 16 VDC sources via either 4-pin XLR or a 5.5mm barrel connector. A single power supply powers both LCD panels.
