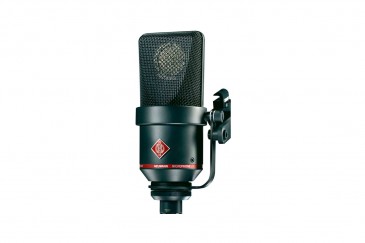

Multi-Pattern Large-Diaphragm Studio Condenser Microphone

Multi-Pattern Large-Diaphragm Studio Condenser Microphone
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Multi-Pattern Large-Diaphragm Studio Condenser Microphone

The black TLM 170 R Multi-Pattern Large-Diaphragm Studio Condenser Microphone from Neumann is a large-diaphragm, multi-pattern condenser microphone and features FET 100 technology, a balanced, transformerless output stage, low self-noise, and an impressive dynamic range.

Five directional characteristics are selectable by means of a rotary switch. In the sixth position, marked "R," the directional patterns can be controlled remotely with the included N 248 power supply.

There is no special cable necessary for this purpose. The microphone has at its rear a 10 dB attenuation switch for extremely high sound-pressure levels, and a high-pass filter to suppress structure-borne noise. A second switch at the rear enables the mic to attenuate the frequency response below 100 Hz to suppress undesired structure-borne noise.

Features:

-Operating Principle Pressure Gradient
-Transducer Condenser
-Polar Pattern Cardioid, Figure-8, Hypercardioid, Omnidirectional, Wide-Angle Cardioid
-Frequency Range 20 Hz to 20 kHz
-Signal to Noise Ratio 68 dB CCIR
-80 dB A-Weighted
-Equivalent Noise Level 26 dB CCIR
-14 dB A-Weighted
-Maximum SPL 144 dB SPL
-Pad 10 dB
-Impedance 50 Ohms
-Load Impedance 1 kOhms
-Sensitivity 8 mV/Pa at 1 kHz into 1 kOhms
