6 Input Rackmount HD Switcher

6 Input Rackmount HD Switcher
Klik pada gambar untuk memperbesar
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 6 Input Rackmount HD Switcher

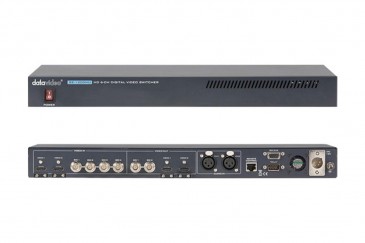

At only 1RU in height, the Datavideo SE-1200MU 6 Input HD Digital Video Switcher is a small, portable, computer controlled switcher. Designed to be controlled using the front panel buttons, RS-422, or via a computer. An optional monitor is required to view your output. The unit supports 1080i and 720p video via 4 HD-SDI inputs and 2 HDMI inputs, with the HDMI inputs supporting computer signals.

The SE-1200MU has 2 HD-SDI outputs and 2 assignable HDMI multi-view outputs. In terms of audio, there are 2 XLR mono inputs (1 stereo pair) and the switcher supports audio embedding of analog audio. The switcher supports Luma and linear keying with 2 downstream keyers, and has built-in effects including fade to black, straight cut, and 32 wipes with border. The internal frame synchronizer allows you to use consumer cameras with HDMI output and computers as input sources while making straight cuts without having the image jump, or requiring a fade to black. As you would expect with a switcher, this unit supports Tally indication on the multi-view output.


-Channels 6
-Video Inputs:
4 x HD-SDI
2 x HDMI
-Video Outputs:
4 x HD-SDI
2 x HDMI (Multi-View PVW)
-Supported Input Resolutions:
1080i 50/59.94/60
720p 50/59.94/60
-Audio Inputs 2 x XLR (1 stereo pair)
-Audio Outputs 2 x XLR (1 stereo pair)
-Embedded Audio Supported
-Tally Output 1 x D-sub 15-pin, dual color
-Control RS-422
-Ethernet (PC control with free Windows software)
-Power 12 VDC, 30 W
-Power Adapter 100 to 240 VAC
