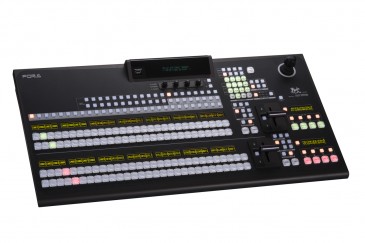

HD/SD 1M/E - 2M/E Video Switcher

HD/SD 1M/E - 2M/E Video Switcher
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai HD/SD 1M/E - 2M/E Video Switcher

The HVS-390HS is the video switcher offering unparalleled broadcast reliability, performance and versatility with enhanced functionality and operability. Like the other HANABI series, it offers a full range of functionality as standard functions, including mixed HD/SD input, frame synchronizer, 2.5D and 3D wipe effects, DVEs, keyer with chroma key, DSKs, still stores, picture in picture and multi-viewers.

In addition to them, the HVS-390HS offering an extreme choice in control surfaces; 6 control panels and 6AUX control panels are available. And more, featuring advanced AUX technology, the HVS-390HS has the capability to be a virtual 6 M/E unit. The unit can be perfect solution in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative ideas of video creators.

With the HVS-390HS, up to 6 different control panel and 6 remote AUX control panel types are offered! From 19” rack mount 12-button panels (1M/E or 2M/E), all the way up to the operator-designed 2M/E 28-button panel, choose the size and type of control that best fits your environment. In addition to traditional control panels, simple remote panels that include Web browser control, as well as our range of AUX control panels are available. Up to 3 control panels and 10 AUX panels can be operated simultaneously, with all control choices easy to operate, for safe, reliable and repeatable LIVE production!

Features:

-Number of M/Es 2
-Number of Inputs Standard: 16 (SDI)
-Maximum: 24 (with 2 x HSDI or 2 x HSDI-A)
-Video Output HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 8 x 75 Ω BNC (2 x PGM, 6 x AUX), 1 x HDMI (AUX) (HDCP, AUDIO incompatible)
-Number of Outputs Standard: 9 (8 x SDI, 1 x HDMI)
-Maximum: 13 (with 2 output cards)
-AUX Outputs Standard: 6
-Maximum: 8
-Signal Processing 4:2:2 Digital component
-Quantization HD/SD-SDI: 10-bit
-GPI IN: 1 x 15-pin D-sub (female), (inch screw) 10 inputs
-TALLY OUT: 1 x 25-pin D-sub (female), (inch screw) 20 outputs
-ARCNET: 1 x 75 Ω BNC, loop-through (Terminate with 75 Ω terminator if unused)
-Ethernet: 100Base-TX/1000Base-T: 1 x RJ-45
-Temperature / Humidity 32 to 104°F (0 to 40°C) / 30 to 90% (no condensation)
-Power 100 to 240 VAC ±10%, 50/60 Hz
-Consumption Maximum 28 W
-Consumables Cooling Fan: Replace every 4 years
-Power Unit: Replace every 5 years
-Battery: Replace every 5 years
(if used 24 hours a day at room temperature)
-Dimensions (W x D x H) HVS-390HS Switcher: 16.9 x 17.7 x 5.2" (430.0 x 450.0 x 132.0 mm)
-Weight Only Main Unit: Approximately 33.1 lb (15.0 kg) (standard)
-Main Unit with full option: Approximately 42.3 lb (19.2 kg)
