7" LCD Monitor with Panasonic Battery Mount

7" LCD Monitor with Panasonic Battery Mount
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 7" LCD Monitor with Panasonic Battery Mount

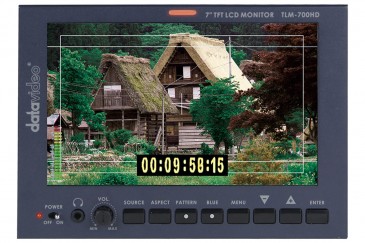

The Datavideo TLM-700HD 7" LCD Monitor with Panasonic Battery Mount is a 7" HD monitor with a rugged design that is suitable for outdoor use in the field or in a studio. In addition to offering NTSC/PAL support, the monitor offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m² and produces high-quality images at a resolution of 800 x 480. A wide viewing angle ensures that you can view images clearly from any corner of the room or when the display is mounted at a height.

Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios. The Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun. With the time code mode, you can view the time code on the screen. In addition, the unit supports VITC (vertical interval time code) type of time code. The featured dual color tally system indicates different program statuses.

Equipped with an integrated color bar, the TLM-700HD LCD monitor offers precise and accurate screen calibration. Multi-language OSD (on-screen display) offers an intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only).

The TLM-700HD LCD monitor supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video input, thereby offering all-round connectivity.

Features:

-Size 7" 16:9 Wide Screen Panel
-Resolution 800 x 480
-Viewing Angle (V)+60/-40°, (H)+60/-60°
-Interface 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio)
-1x Component Y.U.V Sony Betacam Spec
-1x CV input
-1x HDMI input
-1x D-Sub 15 Pin Plug (Tally Light Signal)
-Operating Temperature 32 to 102°F (0 to 40°C)
-Humidity 10 to 90% (non-condensing)
-Firmware SVN 1.6
