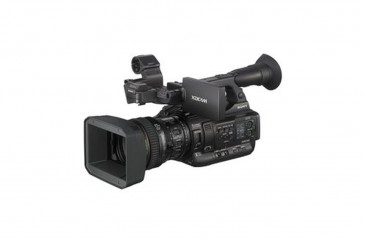

XDCAM XAVC HD422 hand-held camcorder.

Lebih Lengkap Mengenai XDCAM XAVC HD422 hand-held camcorder.

The PXW-X200 incorporates an improved 1/2inch-type Exmor 3CMOS sensor for high sensitivity and low noise image, and XAVC Intra/Long GOP recording with 4:2:2 10-bit sampling as well as MPEG HD 422 50 Mbps MPEG HD 420 35 Mbps, MPEG IMX and DV. As the successor of PMW-200, the PXW-X200 has many new and unique features, including newly developed 17x Fujinon professional HD zoom lens with three independent rings with end stops, able to zoom from 29.3mm to 499mm (35mm equivalent), dual SxS memory card slots for simultaneous recordings*, relay recording, cache recordings, and Slow & Quick function.

The PXW-X200 also has a built-in wireless network operation capability that offers remote control, file transfer, monitoring via smartphones and tablet devices, and live streaming*. *A firmware version upgrade is required to activate these functions.

The Sony PXW-X200 XDCAM Handheld Camcorder is the successor to Sony's PMW-200, featuring three 1/2" Exmor CMOS sensors with higher sensitivity and improved signal-to-noise ratio. It records up to 1080p60 video using the efficient XAVC Intra and Long GOP codecs with 4:2:2 10-bit sampling. To fit into existing workflows, MPEG HD422, HD420, and DV recording options are available. The camcorder is equipped with a 17x Fujinon zoom lens with a 35mm equivalent focal range of 29.3-498.7mm. The lens has independent focus, zoom, and iris control rings with hard stops, offering full manual control.

Physically, the PXW-X200 is nearly identical to the PMW-200, featuring the same compact handheld form factor. Dual SxS media card slots support exFAT, FAT, and UDF file format modes, and supports simultaneous recording to two cards, for instant data redundancy and backup. The camcorder provides four-channel audio recording, as well as 3G-SDI and HDMI outputs for video monitoring. Additional features include a Multi-Interface (MI) shoe, a cache recording feature, and slow and quick motion options from 1 to 60 fps. Footage can be monitored using the 0.45" EVF or the 3.5" QHD (960x540) resolution LCD panel.

Included with the camcorder is a wireless LAN module. Once attached, the module allows you to connect via Wi-Fi with your mobile device for remote control, file transfer, and monitoring. NFC (Near Field Communication) is also supported for easy, one-touch linking to compatible devices.

The PXW-X200 incorporates three 1/2" type Exmor CMOS sensors that produce Full HD resolution (1920×1080) without pixel interpolation. Each image sensor boasts 2.07 million effective pixels, and, combined with Sony's digital signal processing, achieve a wide dynamic range, low noise (S/N ratio of 58dB), and high sensitivity of F12 at 1080/59.94i and F13 at 1080/50i.

Features:

-Effective Picture Elements 1920 (H) x 1080 (V)
-Gain -3, 0, 3, 6, 9, 12, 18 dB, AGC
-Horizontal Resolution 1,000 TV lines or more (1920 x 1080i mode)
-Imaging Device 3-chip 1/2"-type Exmor Full HD CMOS
-Minimum Illumination 0.09 lx (typical, 1920x1080/59.94i, F1.9, +18 dB gain, with 64-frame accumulation, Gamma off, 100% video level)
-0.02 lx (typical, 1920x1080/59.94i, F1.9, +18 dB gain, with 64-frame accumulation, Gamma on, 50% video level)
-Optical System F1.6 prism system
-S/N Ratio 58 dB (Y) (typical)-
-Sensitivity (2000 lx, 89.9% reflectance) F12 (typical, 1920 x 1080/59.94i mode)
-F13 (typical, 1920 x 1080/50i mode)
-Shutter Speed (Time) 1/32 sec to 1/2,000 sec
-Operating Temperature 32°F to 104°F (0°C to 40°C)
-Power Consumption Approx. 18W (while recording with LCD Off, EVF On, I/O Select Off and Wireless function Off)
-Approx. 23W (while recording with LCD On, EVF Off, HD-SDI output and Wireless function On)
-Power Requirements DC 12 V
-Audio Input XLR type 3-pin (2), female, LINE/MIC/MIC+48V switchable; - MIC: –70 dBu to –30 dBu; - LINE: +4 dBu; (Reference level 0 dBu = 0.775 Vrms)
-Audio Output AV multi-connector (1), -10 dBu (Reference level), 47kΩ; (common with Composite Output)
-Composite Output AV multi-connector (1), NTSC or PAL; (common with Audio Output)
-DC Input DC jack (1)
-DC Output No
-EXT 50-pin No
-Genlock Input BNC type (1), switchable with VIDEO OUT connector; 1.0Vp-p, 75Ω
-HDMI Output HDMI connector - Type A (1)
-Headphone Output Stereo mini jack (1); -18dBu 16Ω
-Lens Remote 8-pin round (1)
-MIC Omnidirectional stereo electret condenser microphone
-SDI Output BNC type (1), switchable with 3G SDI/HD-SDI/SD-SDI
-SMPTE292M/259M/424M/425M standards
-Speaker Output Monaural, 250 mW
-Timecode Input BNC type (1), switchable with TC OUT connector; 0.5V to 18Vp-p, 10kΩ
-Timecode Output BNC type (1), switchable with TC IN connector; 1.0Vp-p, 75Ω
-USB Mass storage: USB2.0 mini-B (1); Host: Type-A USB2.0 (1) to use with supplied wireless LAN module
-Video Output BNC type (1), HD-Y/composite signal,1.0 Vp-p, 75Ω
-switchable with GENLOCK IN connector
-i.LINK IEEE 1394, 4-pin (x1); HDV (HDV 1080i) input/output; DV output, S400
-Filter Diameter M77 mm, pitch 0.75mm
-Focal Length f = 5.6 - 95.2 mm (35mm equivalent: 29.3 - 499 mm)
-Focus 800 mm to ∞ (Macro Off)
-50 mm to ∞ (Macro On, Wide)
-800 mm to ∞ (Macro On, Tele)
-AF / MF / Full MF selectable
-Iris F1.9 - F16 and close, auto/manual selectable
-Lens Mount fixed lens
-Zoom System 17x optical zoom
