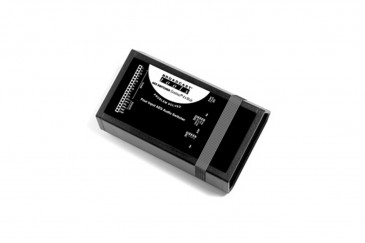

Web-enabled 4x1 AES audio switcher
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Web-enabled 4x1 AES audio switcher
The AES Switcher Sentinel® 4 is perfect
for AES digital audio switching via the web and/or local control. The
AES Switcher Sentinel® 4 can be controlled and monitored locally and/or
remotely over any IP network, including private networks, IP-based
industrial control networks, and the Internet.
Users can operate the product using a web browser, web-enabled mobile device, front panel switch and/or contact closures.
Email
notification may be configured to alert up to eight recipients when
alarms are detected. The user may also enable a sound effect to play on
their PC speaker when an alarm is generated.
The active AES
output is monitored for activity and may be configured to perform user
defined action sequences if activity is lost and switch to a defined
back-up source.
Logging of system status, along with the site ID
may be emailed in time spans from once an hour to once a day. SNMP
support with alarms available as SNMP traps.
Features:
- Internal AES activity sensor monitors the output and displays
active operation. User defined action sequences may be enabled to
switch a failed channel to a back-up source.
- The audio “MUTE” switch allows the user to turn off the AES output when activated.
- The power-up feature allows the user to select which source is active at power up, including the last source selected.
- Protocols: TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP.
- Eight alarm email recipients.
-
Logging of all user selected input status with site ID information
which may be emailed from once an hour to once a day, along with hourly
snap-shot functionality.
- Plug-in euro-block screw terminals for audio I/O connections.
- RJ-45, 10/100base-T LAN/Ethernet interface.
- Fully RFI proofed.
- Surge protected power supply. Domestic power supply provided.
- Four units may be mounted on one RA-1 1-RU shelf.
