Solid State Digital Audio Recorder

Lebih Lengkap Mengenai Solid State Digital Audio Recorder

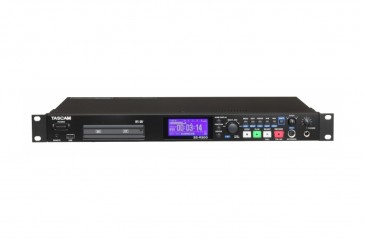

The SS-R200 Solid State Digital Audio Recorder from Tascam provides versatile and stable audio recording, ideal for broadcasting and contract applications. The slim rackmount chassis can fit into any standard 19" equipment rack for easy installation. The recorder can record audio as WAV or MP3 files to meet a variety of needs. Files can be stored on Compact Flash, SD/SDHC, or USB memory for ultimate convenience.

The rear panel offers balanced stereo analog XLR inputs and outputs, as well as unbalanced stereo analog RCA inputs and outputs. There are also coaxial digital RCA I/O connectors, allowing you to connect a variety of consumer and professional audio sources to the recorder. The SS-R200 offers multiple playback modes including continuous, single, programmed, and random. You can even adjust the playback speed without changing the pitch.

A computer keyboard can be connected via PS/2 or USB for editing file names, transport control, and flash start. There are also RS-232C and Parallel control connectors, which support the optional RC-20 and RC-SS20 direct play remote controls. The remotes provide up to 20 tracks of flash start.

RCA connectors are used for analog input/output, which is convenient for consumer devices. In addition, the SS-CDR200 and SS-R200 also have XLR connectors for connecting professional equipment. The RCA connectors can also be used as COAXIAL inputs/outputs for digital input/output. In addition to S/PDIF (IEC60958-3), digital input/output is also available in AES/EBU format (IEC60958-4).

The SS-CDR200 and SS-R200 also have serial control connectors, which are essential for installing with professional audio systems. In addition to a D-sub 9-pin RS-232C serial port, there is also a D-sub 25-pin parallel port.

Features:

-Type Solid state digital audio recorder
-Supported File Types WAV and MP3
-Recording Media Compact Flash, SD/SDHC, and USB
-Connectors 1 x AC power input
-1 x Balanced stereo analog XLR input (2 jacks, L/R)
-1 x Balanced stereo analog XLR output (2 jacks, L/R)
-1 x Unbalanced stereo analog RCA input (2 jacks, L/R)
-1 x Unbalanced stereo analog RCA output (2 jacks, L/R)
-1 x Coaxial digital RCA input (S/PDIF or AES/EBU)
-1 x Coaxial digital RCA output (S/PDIF or AES/EBU)
-1 x RS-23C/parallel control jack
-1 x RS-232C DB-9 control connector
-1 x Parallel DB-25 control connector
-1 x USB port
-1 x PS/2 port
-1 x 1/4" headphone jack
-Power Requirements 100-240VAC, 50-60Hz
-Power Consumption 100V: 16W
-110-240V: 20W
-Operating Temperature 41 to 95°F (5 to 35°C)
