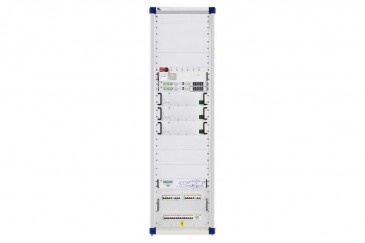

SLIM7500LC VHF BAND III

Lebih Lengkap Mengenai SLIM7500LC VHF BAND III

The Supreme line gathers the solid-state, liquid-cooled TV transmitters produced by Syes. Excellent performance matches with ease of operation and reliability, providing the ideal solution for high-power TV stations.

Top-level output power in compact size: up to 12kW rms per cabinet, with integrated cooling circulation system to simplify equipment installation and handling.

Transmitter configurations are based on a combination of high gain amplifiers, V75 type, directly fed by the exciter. Each module includes a dedicated power supply. The choice of redundancy configurations includes dual drive (exciter std-by), passive reserve (1+1 or n+1) and active reserve.

The equipment parts are installed in 19” cabinets, featuring a remarkably short overall depth.

The RF filter is installed within or outside the cabinet, depending on the configuration and on the specific operation requirements.

Coolant circulation is carried out by redundant pumps, typically integrated in the transmitter cabinet, connected to outdoor heat exchanger(s).

Coolant flow, as well as fan speed of the heat exchanger, are adaptively controlled according to the actual cooling needs.

The coolant type, non-toxic and easy to dispose of, also allows for long service intervals and optimally preserves the cooling circuit parts.

Equipment operation is supervised by the SyES designed control unit.
