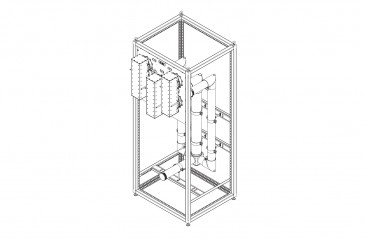

7 PORTS-3 U-LINK 1-5/8" IN/OUT 1-5/8" FLANGED
Harga | Rp 1,00 |
Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 7 PORTS-3 U-LINK 1-5/8" IN/OUT 1-5/8" FLANGED
FREQUENCY RANGE
174 ÷ 230 MHz
IMPEDANCE
50 ohm
RETURN LOSS
≥ 32 dB
INSERTION LOSS
≤ 0.1 dB
OPERATING TEMPERATURE RANGE
-40 ÷ +70° C
MATERIALS
- Support frame
Galvanized steel
- Supporting plate
Aluminium
- External body
Polished copper, polished brass
- Inner conductor
Silver plated brass, silver plated aluminium
- Insulating material
Tefl on
EXTERNAL FINISHING
Painted Ral 9005, Surtec 650
