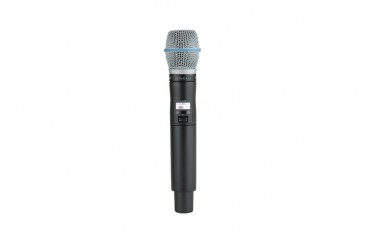

Handheld Transmitter with Beta 87C Microphone Capsule (G50)

Handheld Transmitter with Beta 87C Microphone Capsule (G50)
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Handheld Transmitter with Beta 87C Microphone Capsule (G50)

The ULXD2 Handheld Transmitter with Beta 87C Microphone Capsule from Shure is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable cardioid Beta 87C capsule and is set to Shure's G50 frequency band that operates between 470 to 534 MHz.

The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900 rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with SBC200 dual docking charger.

Features:

Transmitter
-Mic Offset Range 0 to 21 dB (in 3 dB Steps)
-Frequency Band G50: 470 to 534 MHz
-Audio Input Configuration: Unbalanced
-Maximum Input Level 1 kHz @ 1% THD
-RF Output Antenna Type: Integrated Single-Band Helical
-Occupied Bandwidth: < 200 kHz
-Modulation Type: Shure Proprietary Digital
-Power: 1 mW, 10 mW, 20 mW (Varies by Region)
-Battery Type 2x LR6 AA Batteries 1.5 V
-Shure SB900 Rechargeable Li-Ion
-Battery Life Shure SB900: > 11 Hours @ 10 mW
-Alkaline Batteries: > 11 Hours @ 10 mW
-Housing Machined Aluminum
-Dimensions (Ø x L) 2 x 10.1" (51 x 256 mm)
-Weight 12 oz (340 g)

Microphone
-Type Electret Condenser
-Frequency Response 50 Hz to 16 kHz
-Polar Pattern Cardioid
-Sensitivity -51 dBV/Pa (2 mV), 1 Pascal=94 dB SPL @ 1kHz, @ 1 kHz, open circuit voltage
-Maximum SPL 139 dB @ 1 kHz @ 1% THD, 1 kΩ load
-Signal to Noise Ratio 70.5 dB referenced @ 94 dB SPL @ 1 kHz (S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted)
-Dynamic Range 117 dB @ 1 kHz @ 1 kΩ load
-Clipping Level -6 dBV (0.5 V), @ 1 kHz @ 0.25% THD, 1 kΩ load
-Self Noise 22 dB (typical, equivalent SPL; A-weighted)
