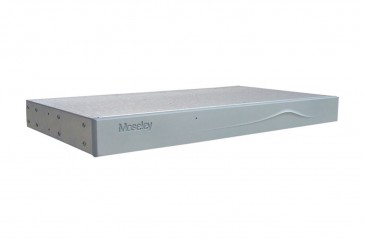

Digital Audio Transporter
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Digital Audio Transporter
Based on Moseley's Advanced Intelligence
Multiplexer (AIM) technology, Rincon is the broadcast industry’s first
Software Defined Audio Transport Product optimized to deliver
multichannel digital audio over IP, TDM or Wireless networks
simultaneously. The product’s ability to leverage these network choices
and low purchase price gives excellent return on investment.
AES/EBU
and Analog XLR connectors and integrated Analog and AES for operator’s
ease of use. Choice of Linear Uncompressed, MPEG2, MP3, AAC LC&LD,
and G.722/G.711 maximizes performance over any network
topology. Simultaneous E1/T1 and IP transport allows broadcasters to
select the most cost effective network available.
Integrated
Ethernet Switch for QOS to make sure your audio gets through the
traffic. Integrated Web Server/SNMP Agent for ease of management. Auto
negotiation of parameters between units makes it easily deployed and
field configurable. Unicast/Multicast RS-232 channels for RDS or device
control.
Features:
-INTEROPERABILITY ACIP Compliant and VLC Compatible
-FEC Pro-MPEG CoP 3 r2
-STREAMS Up to 4 Audio Streams
-VLAN IEEE 802.1Q Support
-PACKET SIZE User selectable per stream
-JITTER BUFFER Adaptive or adjustable per stream, QoS Per stream, ToS, DiffServ
-TOPOLOGY Point-to-Point unidirectional; Point-to-Point bidirectional; Point-to-Multipoint multicast
-SYNCHRONUS BACKUP Programmable failover per stream to Alternate audio source and transport
-LATENCY IP TRANSPORT 30 – 500 ms
-FREQUENCY RESPONSE < 5 Hz to 22.5 kHz (48 kHz); < 5 Hz to 15 kHz (32 kHz)
-DISTORTION < 0.01% at 1 kHz
-SAMPLE RATE Selectable 32, 44.1, 48 kHz; built-in rate converter
-DYNAMIC RANGE 90 dB static encoder/decoder: > 120 dB AES EBU
-CROSS TALK -80 dB
-LEVEL STABILITY < 0.2 dB
