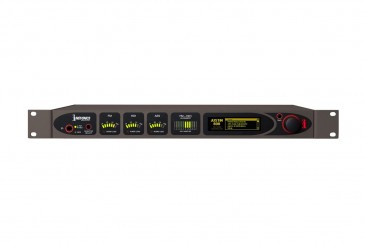

JUSTIN HD Radio Delay Processor

JUSTIN HD Radio Delay Processor
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai JUSTIN HD Radio Delay Processor

Inovonics’ JUSTIN 808 maintains time alignment between analog FM and HD1 channels to within 23 microseconds (±1 sample). The JUSTIN 808 only makes it's time-alignment adjustments to the HD1 channel leaving the critical FM transmission untouched - an important distinction when choosing a time-alignment processor.
No more lost words, stuttering, echoes, or level shifts. The entire sync process is 100% automatic, and the JUSTIN’s Web interface features SNMP support and dispatches e-mail and SMS alarm messages.

Features:

-Correction Resolution:Corrects to ±1 sample (±23 μs)
-Maximum Delay Error Correction:16 seconds
-Time Required to Correlate Delay Errors::Small delay errors (up to 0.4 seconds) require up to 30 seconds to correlate; delay errors of 10 seconds could require as much as 3.5 minutes.
-Time Required to Correct Delay Errors:Correction rate is user-programmable between 1 and 1000 samples per second (23μs/sec to 23ms/sec).
-“Catch-Up” Button Feature:A front-panel menu item, also accessible via the Web Interface, permits a manual time alignment quick reset to a previous long-term mean value. This obviates correlation acquisition and brings time alignment close to the required figure.
