DSP-based FM Radio Re-Broadcast Receiver with TCP/IP Connectivity

Lebih Lengkap Mengenai DSP-based FM Radio Re-Broadcast Receiver with TCP/IP Connectivity

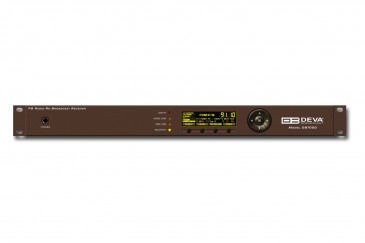

DB7000 is a frequency-agile, digitally-tuned FM Re-Broadcast Receiver equipped with a sophisticated and high-selective DSP based FM-tuner. The RF (IF) signal is digitalized as soon as it enters the device and all signal processing is then made through DSP algorithms. The signal being digitalized in this way, at the input, the equipment acquires measurement reproducibility over time. The high-accuracy DSP based IF bandwidth filters help to solve difficult adjacent-signal. The DB7000 measures conveniently all important parameters of FM transmissions. The built-in monitoring system will generate automatic warning messages in case of faulty or missing data. The incredible processing power of the device enables all measurements to be refreshed simultaneously and synchronously, thereby allowing for detailed readings of all the Multiplex FM signal components.

Features:

Fully DSP-based management core
Wide angle, easy to read OLED display
Very Intuitive Navigational Menu
Selectable De-emphasis - Off, 50µs and 75µs
Built-in high performance Stereo Decoder
Real Time Audio Program Streaming
Remote Listening via optional GSM modem
Easy to use WEB interface
Apple and Android devices support
SNTP for automatic sync of the built-in clock
RDS and RBDS decoder with BER meter
Alarm dispatch via E-mail, SMS, SNMP and GPO
Complete status reporting with SMS via optional GSM modem
Protected access to the device settings
Balanced Analog Audio Outputs on XLR Connectors
Professional AES/EBU, SPDIF and Optical Digital audio outputs
LAN port for full TCP/IP remote control and monitoring
Adjustable MIN/MAX alarms for RF, Pilot, L & R Audio Levels, MPX, RDS
USB communication interface for local connectivity
Headphone output with front panel level control
Easy and intuitive Windows Application
Firmware updates will ensure improved operation
Accurate front-panel metering for local use
Restore Factory Parameters option
Wide operating voltage range: 100-240V AC
19" Professional Case for high RF immunity
Easy Installation and Setup
Backup Station
