Stereo Audio Matrix Switcher

Stereo Audio Matrix Switcher
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Stereo Audio Matrix Switcher

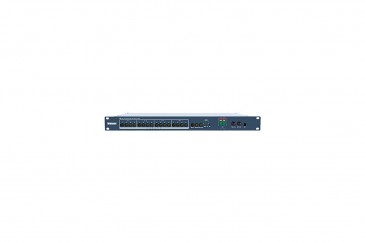

The Broadcast Tools® SS 4.4 provides matrix audio switching of 4 stereo inputs to 4 stereo outputs. Matrix switching allows any/or all inputs to be assigned to any/or all outputs.

The SS 4.4 may be controlled via front panel switches, contact closures, open collectors, logic and/or the multi-drop RS-232 serial port (USB or Ethernet optional). Installation is simplified with plug-in euroblock screw terminals.

Features:

- Stereo LED VU meters with front panel output selection switch.
- Stereo headphone amplifier with front panel output selection switch, headphone jack and level control.
- Stereo powered monitor output with front panel output selection switch and level control.
- Power-up selection of inputs to outputs, mute or last source selected.
- Most configuration options via rear panel dipswitches.
- 16 input “PIP” (GPI / Triggers) port (or remote control) with front panel LED indicator.
- Four open collector status outputs or programmable via burst commands.
- Four SPDT relays with selectable multiplex function on inputs assigned to output two.
- Multi-turn input and output level controls.
- Electronically balanced stereo inputs and outputs with low noise and distortion circuitry.
- Multi-drop RS-232 serial port (USB and/or Ethernet optional) with power and data activity LED.
- Multiple units may be cascaded to expand inputs.
- Plug-in euroblock screw terminals for ALL audio I/O and remote control connections.
- 1-RU aluminum enclosure.
- Universal switching power supply.
