Telephone Handset Audio Tap

Telephone Handset Audio Tap
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Telephone Handset Audio Tap

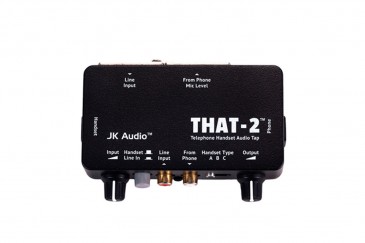

The JK Audio THAT-2 is a telephone audio interface that connects between the telephone receiver and base. THAT-2 is designed to capture audio to record and play sound bytes or to send IFB dialog over phone lines. The compact telephone tap features balanced and unbalanced XLR and RCA I/O connectors.

The audio connections are used for sending line level signal down phone lines or capturing a mix of send and receive audio. A 3-position switch enables THAT-2 to be used with either a carbon, dynamic or electret style receiver (receivers with keypads are not compatible). Level adjust dials provide control over send and receive levels. THAT-2 is a compact, passive device that requires no external power source.

Features:

Line Input
-RCA
-Impedance 600-9000 ohms
-Level 250 mV RMS (+12 dBu nom)
Line Input
-Female XLR
-Impedance 600-9000 ohms
-Level 250 mV RMS (+12 dBu nom)
Output
-RCA
-Impedance 0-2500 ohms
-Level 100 mV RMS (-18 dBu nom)
Output
-Male XLR
-Impedance 0-2500 ohms
-Level 100 mV RMS (-18 dBu nom)
