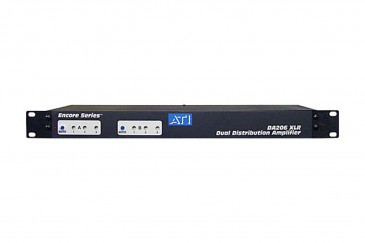

ATI Dual 1X3 Distribution Amplifier

ATI Dual 1X3 Distribution Amplifier
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai ATI Dual 1X3 Distribution Amplifier

The DA206 is ideal for every application and every budget. Avoid RF and hum pick-up problems from noisy, lossy splitters. Prevent hard-to-find shorts from multiple taps on critical lines. Boost console outputs. Drive long lines. Eliminate rolloffs and distortion from mismatched load impedances and enjoy the maximum versatility that this unit provides. The DA206 gives you two inputs, each driving a master input gain adjustment and three individual output level trimmers. All outputs are ground sensing and active balanced. You can parallel the inputs with internal jumper plugs for up to 1 x 6 operation. Drive everything from balanced 600-ohm lines to HI-Z IHF phono jack inputs without matching pads or noise compromises. You get transparent performance, RF protected.

The DA206 is fully RFI protected with double ground plane PC boards, a shielded enclosure, split and bypassed input and output networks, ferrite suppressors with double line bypassing and non-concentric wound, semi-toroidal power transformers, and has active balanced outputs.

Features:

-GAIN:40dB Max.
-NOMINAL LEVELS:+4dBm out , +4 to-20dBu in.
-PEAK LEVELS:+22dBu in., +22dBm out.
-DISTORTION THD:.10% at peak levels; .005 at nominal levels; 20Hz to 20kHz
-IMD:.05% maximum,
-SMPTE RESPONSE:+/-.25dB 20 to 20,000 Hz
-CROSSTALK & OUTPUT ISOLATION:70dB min at 10kHz, a shorted output does not affect any other outputs.
-NOISE:20kHz bandwidth, -75dBm out at full gain.
-INPUTS:20k ohm active balanced, split and RF bypassed, 60dB
-CMR:at 60Hz.
-OUTPUTS:Active balanced, servo controlled, ground sensing, 50 Ohm output impedance, DC coupled. XLR type male connectors, Pin 2-HI, 3-LO, 1-GND.
-OUTPUT LEVEL:+22dBm peak into 600 ohm balanced load; +18dBm peak typical into unbalanced loads.
-SLEW RATE:13 Volts per microsecond.
-POWER:115/230 VAC+/-10%, 47-63Hz, 20 VA.
