Trackless Virtual Studio System (SDI)
Harga | Rp 1,00 |
Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Trackless Virtual Studio System (SDI)

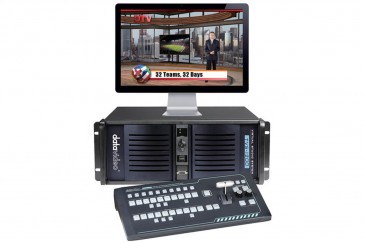

The TVS-1200 Trackless Virtual Studio
System from Datavideo is a computer-based 2D, real-time production
solution with very high-quality live chromakeying. The TVS-1200 uses two
fixed cameras and creates additional virtual cameras. This allows the
director to zoom, pan, and tilt the cameras within the set. Its
innovative virtual set maker enables users to create their own distinct,
branded sets within minutes. Furthermore, with two camera inputs and
two keyers, the TVS-1200 gives the user the capability to place two
talents on one simulated set.
The TVS-1200 can be used in a
remote scenario whereby the images captured by the two cameras at two
different sites are placed on one single virtual set. Also Integrated
into the system are tools to record the program output, broadcast live,
and stream over the internet. The TVS-1200 provides PC PS/2 and USB
connectivity for your monitor, keyboard and mouse (all sold separately).
Features:
-Connectors:
1 x PS/2, keyboard/mouse port
2 x USB 2.0, keyboard/mouse port
4 x USB 3.0 USB BIOS Flashback port
1 x RJ45, LAN port
6 x PC audio I/O ports
1 x HDMI, monitor video output
2 x BNC, 3G/HD/SD-SDI video input
2 x BNC, 3G/HD/SD-SDI video output
1 x 3.5 mm phone jack, Aux 2 CH stereo audio input
1 x 3.5 mm phone jack, tally output
-Supported Video Formats SMPTE-425M: 1080p (60/59.94/50/30/25) / 1080i (60/59.94/50)
-SMPTE-274M: 1080p (30/29.97/25) / HD-SDI 3 Gb/s
-SMPTE-296M: 720p (60/59.94/50)
-Video Capture Formats H.264 (.mpeg4, .h264)
-MPEG-2 (.mpg)
-Recording H.264 / MPEG-2
-Audio Formats .mp3 / .aac
-Downstream Key Two
-Media Support H.264, AAC, AMR, DVCProHD, DVCPro50, DVCPro, JPEG2000, MJPEG, MPEG-2, MPEG-4, VC-1, MP4, MXF, DV, and WMV
-Still Image Two
-Picture Format .png / .jpg
-Still Text Two
-Keyer Chroma key/luminance key
-Hard Disk 2.5" (6.4 cm) removable hard drive
