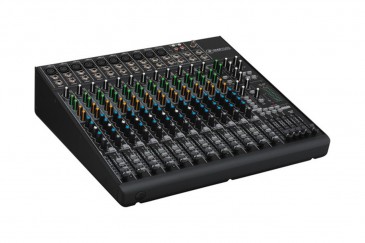

16-Channel 4-Bus Compact Mixer
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 16-Channel 4-Bus Compact Mixer
The Mackie 1642VLZ4 16-Channel 4-Bus
Compact Mixer delivers the proven performance of Onyx preamps in a
compact 4-bus mixer design, suitable for bands, clubs, and more. From
every input to every output, the mixer is designed to provide the
highest headroom and lowest noise possible for maximum signal integrity.
The
mixer is built-like-a-tank with a rugged solid-steel chassis and
high-contrast controls for tactile control. With features like an
expanded return section for no-hassle system integration and a dedicated
control room section, the 1642VLZ4 16-Channel 4-Bus Compact Mixer is
the go-to mixer choice for any application that demands flexibility and
professional performance.
Features:
Noise Main Mix Noise:
Main Mix Fader @ Unity, Channel Faders Down: -86.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu)
-Main
Mix Fader @ Unity, Channel Faders @ Unity: -86 dBu (20 Hz to 20 kHz
bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all
channels assigned to main mix, odd channels panned left, even channels
panned right)
-Total Harmonic Distortion (THD) Microphone In to Insert Send: <0.0007% (1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
-Crosstalk
/ Attenuation Channel Mute Switch Engaged & Channel Gain Knob Down:
-82 dBu (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in,
1/4" main out, gain @ unity)
-Frequency Response Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz
-Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
-Microphone input to insert send out, maximum gain
-Common Mode Rejection Ratio Better than -70 dB @ 1 kHz
-Maximum Level Microphone In: +22 dBu
-All Other Inputs: +22 dBu
-Main Mix TRS Out & XLR Out: +28 dBu
-All Other Outputs: +22 dBu
-Impedance Microphone In: 2.5 kΩ
-Channel Insert Return: 2.5 kΩ
-All Other Inputs: 10 kΩ or greater
-Tape Out: 1.1 kΩ
-All Other Outputs: 120 Ω
-Equalizer 3-Band EQ (Channel 1 to 8):
-High Shelving: ±15 dB @ 12 kHz
-Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
-Low Shelving: ±15 dB @ 80 Hz
-Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz
-4-Band EQ (Channel 9 to 16):
-High Shelving: ±15 dB @ 12 kHz
-Hi Mid Peaking: ±15 dB @ 2.5 kHz
-Low Mid Peaking: ±15 dB @ 400 Hz
-Low Shelving: ±15 dB @ 80 Hz
-Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz
-Power Consumption 50 W, 100 to 120 VAC/ 200 to 240 VAC, 50 to 60 Hz
-Operating Temperature 32 to 104°F (0 to 40°C)
-Fuse Rating 100 to 120V: 1 A slo blo, 5 x 20 mm
-220 to 240V: 0.5 A slo blo, 5 x 20 mm
