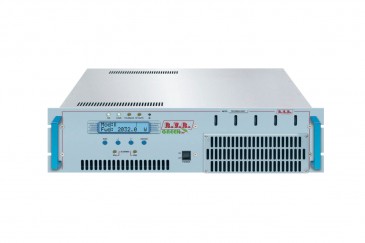

FM Transmitter

FM Transmitter
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai FM Transmitter

High quality at a very attractive price. Ideal for use as transmitters in stand-alone applications. Adjustable power output from 10 to 100%

PRIMARY APPLICATION: high quality at a very attractive price. Ideal for use as transmitters in stand-alone applications. Adjustable power output from 10 to 100%.
AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.
HARDWARE FEATURES: compact (525mm depth only) and in deformable thanks to the stainless steel chassis, in 3 rack units only.
USER-FRIENDLY FEATURES: four pushbuttons for user/device interaction and software that offers a simple, intuitive interface.
EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.
OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Fold back protection ensure reliable operation under any operating conditions.
INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals.
RDS APPLICATION: built-in RDS encoder with UECP standard functions (option).
REMOTE CONTROL: built-in telemetry system via GSM modem, battery and battery charger or via WEB or via SNMP (option).
REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.

Features:

-Output Power: Adjustable from 0 to 2000 W
-RF Output Connector: 7/8 ''
-Impedance: 50 Ohms
-Frequency Range: 87.5 MHz ÷ 108 MHz
-Modulation type: F3E
-Consumption: 3320 VA / 3300 W / PF: 0.99
-Cooling System: Forced with internal fan
-Frequency Programming: By front panel
