4K XDCAM Super 35mm Cam with Lens

Lebih Lengkap Mengenai 4K XDCAM Super 35mm Cam with Lens

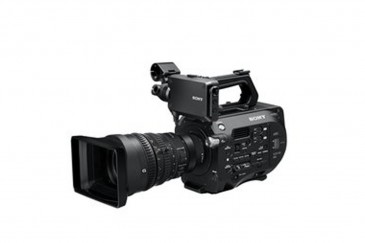

his pairing of a PXW-FS7M2 4K XDCAM Super 35 Camcorder Kit with an 18-110mm Zoom Lens from Sony provides you with a camera and lens system ready for today's Super 35mm 4K single-camera productions. Well suited to cinema, documentaries, news magazines, or as the base of a kit to build upon for commercial production. A sturdy locking E-mount, which can support cinema-style zoom lenses, and an electronic variable ND filter highlight some of the camera's features. The camera supports recording of HD, UHD 4K, and DCI 4K to integrated XQD media card slots.

The included Sony 18-110mm power zoom lens covers the Super 35mm format and supports 4K resolution. It features a Sony E-mount, which allows it to mount directly on the camera without requiring an adapter. The power zoom incorporates a mechanically linked zoom ring for precise control with no motor lag, and it features separate geared focus, zoom, and iris rings for manual image control.

Expanding on the original FS7, Sony's PXW-FS7M2 XDCAM Super 35 Camera System is a flexible 4K camera system. Designed as a camera that is at home on productions as diverse as "Cinéma Vérité"-style documentaries, reality TV, commercial, and corporate applications It features a Super 35mm sized sensor that allows you to capture images with cinematic depth of field. The camera incorporates a stronger locking E-mount that is fully compatible with E-Mount lenses, and supports all electronic connections. The locking mount reduces lens play, and allows you to use most 35mm lenses including PL, EF, Leica, and Nikon via optional adapters. This stronger E-mount is ideal for using heavier-long cine-zooms without the need for additional lens support.

Just behind the lens mount sits an electronic variable ND system that provides a clear filter and 3 user definable presets. The variable ND can be adjusted to provide between 2 and 7 stops of ND. The camera can capture footage to optional on-board XQD media cards in either DCI 4K (4096 x 2160) or UHD 4K (3840 x 2160) at up to 59.94 fps or HD at up to 180 fps.

The camera records in your choice of XAVC-I, XAVC-L, or MPEG-2. However, MPEG-2 recording does not support the high data rates the camera is capable of generating when shooting in UHD, and is limited to recording HD video only. The camera incorporates Dual XQD media card slots that support simultaneous or relay recording. An ergonomically designed handgrip provides control of many of the camera's functions and features an adjustable length support arm.

Features:

-Effective Picture Elements 11.6 MillionTTL 8.9 in 4K; 8.3 Million in UHD snd HD
-Gain -3, 0, 3, 6, 9, 12, 18 dB, AGC
-Imaging Device Super35mm Progressive Scan EXMO Sensor
-Minimum Illumination 0.7 lx (+18 dB, 23.98p, Shutter OFF, ND Clear, F1.4)
-Optical System Bayer
-S/N Ratio 57 dB (Y) (typical)
-Sensitivity (2000 lx, 89.9% reflectance) T14 under the following conditions: Video Gamma, 3840 x 2160; 23.98p mode 3200K
-Shutter Speed (Time) 1/3 sec to 1/9,000 sec
-Operating Temperature 32°F to 104°F (0°C to 40°C)
-Power Consumption Approx. 19 W (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)-
-Power Requirements DC 12 V
-Audio Input MI Shoe plus XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -40, -50, -60 dB
-Audio Output Headphone Stereo mini jack (x1) -16 dBu 16 Ω
-Composite Output Via SDI or HDMI connectors
-DC Input DC Jack with camera body or 4-pin XLR when optional XDCA-FS7 is used.
-DC Output 4-pin Hirose when optional XDCA-FS7 is used.
-Genlock Input With optional EXCA-FS7 (H phase adjustment is possible)
-HDMI Output Type A (10-bit 4:2:2 HD all frame rates and UHD up to 30fps. Above 30fps UHD HDMI out is 8-bit 4:2)
-Headphone Output Stereo mini jack (x1) -16 dBu 16 Ω
-Lens Remote By included SmartGrip, Externally via LANC or WiFi remote
-MIC Bulit in: Monoaural Omnidirectional Electret Condenser Microhone
-Remote RMt845 IR remote and WiFi
-SDI Output BNC (x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M
-Speaker Output Monaural
-Timecode Input BNC when optional XDCA-FS7 is used (no looping)
-Timecode Output BNC when optional XDCA-FS7 is used.
-USB USB device, mini-B (x1)
-VF 8.8 cm (3.5 type) Approx. 1.56M dots
-Video Output BNC (x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M
-Filter Diameter 90mm
-Focal Length 28mm to 135mm
-Focus Internal
-Iris Nine blades (circular perture) F/4 to F/22 (click or click-less)
-Lens Mount Sony E-Mount
-Zoom System 4.8x
