Multiformat Camera System
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Multiformat Camera System

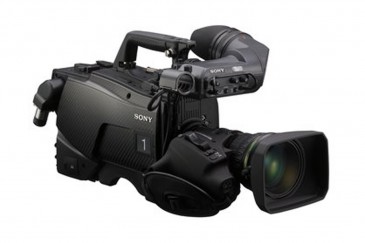

Sony is pleased to introduce the HDC-2400L HD portable and studio configurable camera system. The HDC-2400L is a successor model of the current HDC camera system including HDC-1400R. Incredible picture performance and features are realized by incorporating newly developed 16-bit Digital-Signal-Processing (LSI) and new image-sensors. A remarkable signal-to-noise ratio of 64 dB can be achieved when Noise Suppression (NS) is applied. The HDC-2400L integrates many unique features, modern design of carbon-graphite side panel, 3G signal transmissions and others. The Basic operation of this camera will be under 1080i, 720p. By adding available optional software the camera can be operational under all signal formats including 2 x slow-motions. In addition, all of accessories currently available for HDC series camera will be used for this camera system.
Features:
-Built-in-Filters ND)1: CLEAR, 2: 1/4ND, 3: 1/16ND 4: 1/16ND, 5: 1/64ND
-Dynamic Range 600%
-Effective Picture Elements 1920 x 1080 (H x V)
-Gain Selection -6,-3,0,+3,+6,+9,+12 (standard)
-Horizontal Resolution 1000tvl
-Lens Mount B4
-Modulation Depth Y: 50% at 27.5 MHz (800 TV lines with typical lens)
-Optical System F1.4 prism system
-Pickup Device 3-chip 2/3-inch type CCD (IT)
-S/N Ratio 60db(Typical) 64db with NS
-Sensitivity F10 (1080i/59.94 mode), F11 (1080i/50 mode) (at 2000 lx, 3200 K, 89.9% reflectance)
-Format 1080i and 720p standard
-Operating Temperature -20°C to +45°C (-4°F to +113°F)
-Power Requirements 240 V AC, 1.4 A (max.), 180 V DC, 1.0 A (max.), 12 V DC, 7 A (max.)
-Storage Temperature -20°C to +60°C (-4°F to +140°F)
-Weight 4.5 kg (9 lb 15 oz)
-Audio Input (Ch1, Ch2) XLR 3-pin (x2) (female)
-DC IN XLR 4-pin (x1)
-Genlock/Return IN BNC (x1), 1 Vp-p, 75 Ω
-Return Control 6-pin (x1)
-CCU Optical / electrical multi-connector (x1)
-Crane 12-pin (x1)
-Intercom Intercom 1 / Intercom 2 XLR 5-pin (x2) (female)
-Lens 12-pin (x1)
-Prompter Prompter output / Genlock input BNC (x1), 1 Vp-p, 75 Ω
-Prompter output / Return input BNC (x1), 1 Vp-p, 75 Ω
-Remote 8-pin (x1)
-Tracker 10-pin (x1)
-Audio / Headphone Output(s) Mic input XLR 3-pin (x1) (female)
-Audio In (Ch1, Ch2) XLR 3-pin (x2) (female)
-DC In XLR 4-pin (x1)
-DC Out mini type 4-pin (x1) (DC 10.5 V to 17V, max. 0.5 A)
-2-pin (x1) (DC 10.5 V to 17V, max. 2.5 A)
-Earphone Stereo mini-jack 3-pin (x1)
-HD-SDI Out (Dual Link) SDI 1 BNC (x1) (3G / HD-SDI output)
-SDI 2 BNC (x1) (HD-SDI input / output)
-SDI monitor output BNC (x1) (HD-SDI / SD-SDI)
-Memory Stick Type A 4-pin (x1)
-Test Out BNC (x1), 1 Vp-p, 75 Ω
