Lebih Lengkap Mengenai Microphone with AK 20 Capsule

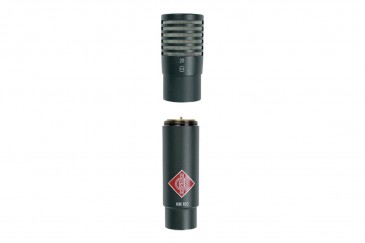

The KM 120 Microphone from Neumann is simply a microphone combination set consisting of the KM 100 phantom power supply/output stage and the AK 20 bi-directional (figure 8) microphone element. The swivel mount and windscreen are also included in the set. Neumann's modular KM 100 series is designed to be versatile with the ability to interchange microphone elements and accessories based on individual applications.

The KM 100 is powered via 48 Volt phantom power and is designed for quick connection to all compatible elements and accessories. The KM 100 uses transformer-less circuitry resulting in high output capability and low self-noise. The balanced XLR output is protected against radio frequency interference. The entire microphone circuitry is built into the capsule on a single hybrid module measuring 2cm in area. The result is a compact, interchangeable output stage providing pristine output signal without any coloration.

The AK 20 microphone element features a pressure gradient, single diaphragm transducer with a figure 8 polar pattern. The diaphragm diameter is just 16mm and all sound field components reach the diaphragm directly. The end result is even frequency response and output levels between 0 to 180 degrees in proximity. The figure 8 polar pattern is effective in stereo MS recording (with an AK 40 or other cardioid mic), ambiance capturing or lectures and conferences with 2 speakers at either ends of the microphone.

Features:

-Operating Principle Pressure Gradient
-Polar Pattern Figure-8
-Frequency Range 20 Hz to 20 kHz
-Signal to Noise Ratio 68 dB CCIR
-76.5 dB A-Weighted
-Equivalent Noise Level 26 dB CCIR
-17.5 dB A-Weighted
-Maximum SPL 140 dB SPL
-Pad 10 dB
-Impedance 50 Ohms
-Load Impedance 1 kOhms
-Sensitivity 12 mV/Pa at 1 kHz into 1 kOhms
