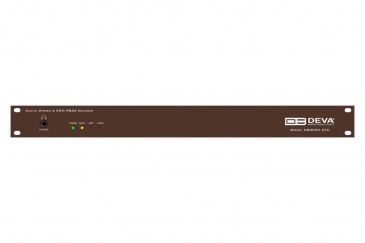

DSP-Based Stereo Generator with RDS/RBDS encoder
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai DSP-Based Stereo Generator with RDS/RBDS encoder
DB9000-STC is a high-performance, 32bits
DSP based Stereo Generator with built-in RDS/RBDS encoder. It has been
successfully designed to satisfy the most demanding requirements of FM
Stereo generation and advanced RDS/RBDS encoding. This Stereo Encoder
accepts both, Analog and Digital AES/EBU audio sources. DB9000-STC comes
with an easy to use and password protected Web Server and a
comprehensive remote control features. It supports SNMP, RS232, UDP,
TCP/IP communication protocols. Its digital architecture guarantees long
term reliability and easy firmware updates, directly on field or from
remote.
The built-in RDS encoder can 'parse' scrolling text,
automatically breaking phrases into word groups. It gives dynamic,
on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP
interfaces. This connectivity permits full integration of RDS/RBDS
transmissions with the station’s other networked functions, including
message streams for digital radio and Webcasting. It can be easily
interfaced to various Automation Systems and offers an ASCII protocol
for broadcasting song/artist information.
Another impressive
feature of the DB9000-STC is that it can fight the dreaded dead air
problem. The DB9000-STC provides additional uncompromising security in
case of loss of audio at the audio inputs. The audio backup is presented
as an integrated built-in MP3 audio player. The basic principle of
operation is that this unit can detect the silence and switch the output
to the alternative MP3 Player. The MP3's backup audio files and play
lists can be uploaded in the device from your PC using any FTP client.
The audio storage capacity of DB9000-STC is 2 Giga Bytes.
Based
on the latest DSP technology, the DB9000-STC is fully digitally designed
for 24/7/365 operation. This product is the most cost effective,
versatile and reliable solution designed for the broadcasters looking
for a customized solution for a single, or a multiple transmitter sites.
Features:
-Fully Digital 32 bits DSP Stereo Encoder
-Excellent Audio Performances
-Digital Volume Control of all Audio Inputs
-Adjustable Pilot, L-R, RDS phases
-Selectable pre-emphasis 0, 50µs, 75µs
-Digitally adjustable Pilot & RDS injection levels
-Fully Digital Synthesis of the RDS Signal
-Intelligent Silence Detector and Backup Audio Player
-Configuration and Monitoring via SNMP Ver.2C & WEB
-Alert Notifications via E-mail, SNMP in case of Audio Loss
-Lots of Storage for over 24 hours of non-repeating audio playback
-Always Fresh Backup Audio Tracks with Embedded FTP server
-Professional Balanced Stereo Analog Input on XLR connectors
-Professional Digital AES/EBU Audio input on XLR connectors
-Headphones Jack for local monitoring of the Audio Signal
-Built-in MP3 Player with built in 2GB SD Card
-UPnP for easy discovery in Local Networks
-Professional 19 inches, 1U Professional rack mount chassis
-Remote Firmware Upgrade for future-proof operation
-Protected access to the device settings
-Easy installation and operation
-2 Years Warranty
