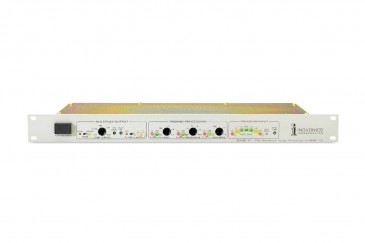

David III FM Broadcast Processor

David III FM Broadcast Processor
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai David III FM Broadcast Processor

The 718 "DAVID-III" combines comprehensive multiband audio processing with a digital-synthesis stereo generator for unparalleled performance and great value. Pulse-width-modulation (PWM) techniques ensure rock-stable operation and a very competitive, yet effortless sound. Density and equalization adjustments allow the broadcaster to tailor the 'signature' of the on-air sound. Proprietary PIPP* final limiting and an adjustable composite clipper guarantee full carrier modulation for any program audio source or characteristic.

Features:

-FREQUENCY RESPONSE:±0.5dB, 20Hz-15kHz
-STEREO SEPARATION:>55dB, 50Hz-15kHz (typically 60-70dB)
-NOISE:Better than 70dB below 100% modulation in decoded L/R audio. Individual digital noise components above 54kHz are –70dB or better.
-DISTORTION:<0.5&#xTH;D in baseband and subcarrier at 95% modulation with PIPP* limiter defeated; <1.5% at any level of modulation with PIPP* limiter engaged.
-CROSSTALK (M/S or S/M):Nonlinear crosstalk is better than –50dB, 50Hz-15kHz. Linear crosstalk (through processing and filters) is better than –40dB.
-PRE-EMPHASIS:75μs or 50μs selected by internal jumpers.
