INOmini FM/RDS SiteStreamer

INOmini FM/RDS SiteStreamer
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai INOmini FM/RDS SiteStreamer

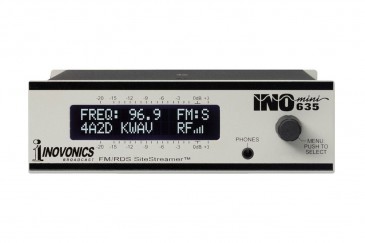

The INOmini 635 is a Web-enabled FM receiver for remote signal monitoring. It is essentially a remote-control FM radio with remote audio monitoring capabilities via the Internet. Installed at a transmitter/translator site or any remote location, it streams off-air audio or a wired audio feed back to any computer, tablet or mobile device.

The browser interface enables remote tuning, displays audio levels and RDS data, and logs signal parameters. Email, SMS messaging and SNMP protocols are fully supported.

Features:

-ANTENNA INPUT:75-ohm ‘F’.
-RECEIVER SENSITIVITY:≤10uV for 50dB monaural SNR.
-AUDIO FREQUENCY RESPONSE:±1dB, 30Hz–15kHz; 50μs/75μs de-emphasis.
-PROGRAM LINE INPUT:Active-balanced (XLR) left/right analog inputs; internal jumpering for +4dBu or –10dBu “zero-VU” levels; local and remote switching between off-air and line feeds.
-NETWORK CONNECTION:LAN (RJ-45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet.
-POWER REQUIREMENT:12VDC at 140mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included.
