PCI Sound Cards

PCI Sound Cards
Klik pada gambar untuk memperbesar
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai PCI Sound Cards

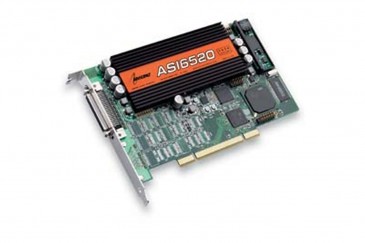

The ASI6522 and ASI6520 are professional PCI sound cards designed for use in radio broadcast automation.Providing 4 or 6 play streams that are mixed to 2 balanced stereo outputs and 2 or 4 record streams fed from 2 balanced stereo inputs, the ASI6522 and ASI6520 feature AudioScience’s unique “anything to anywhere” mixing and routing.

The ASI6522 provides both balanced analog and AES/EBU inputs and outputs. The ASI6520 has analog I/O only. The maximum analog input and output level is +24dBu.

A choice of uncompressed PCM, MPEG layer 2 and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.

ASI6522 and ASI6520 functionality includes MRX multi-rate mixing technology which allows streams of different sample rates and formats to be mixed digitally. TSX time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.


-TSX™ time scaling by up to +/-20%
-Balanced stereo analog I/O with levels to +24dBu<
-24bit ADC and DAC with 110dB SNR and 0.0015% THD+N
-AES/EBU I/O with sample rate converters on all inputs (ASI6522 only)
-SoundGuard™ transient voltage suppression on all I/O
-Short length PCI card format (6.6 inches/168mm
-Up to 4 cards in one system
-Windows and Linux software drivers available
