Switcher/Router
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Switcher/Router

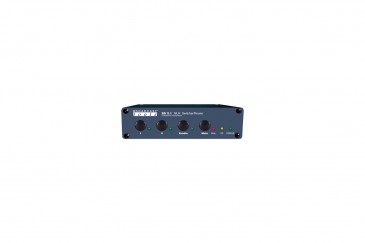

The SS 2.1 MLR/BNC is a transparent two
input, dual output switcher/router with mechanical latching relays and
BNC connectors. The SS 2.1 MLR/BNC is perfect
for all types of passive signal switching via front panel switches, contact closures and/or serial RS-232.
The
switching is accomplished with mechanical latching gold contact relays,
which means that the unit can route a signal in either direction. Due
to the passive nature of the switching, any input level and impedance
can be used. Inputs may be balanced or unbalanced, while output levels,
impedance, distortion,
noise and balancing will match that of the selected input.
The
SS 2.1 MLR/BNC can be controlled and monitored locally and/or with
simple contact closures to ground, as well with multi-drop RS-232 serial
commands.
Features:
- Remote control via contact closures, 5-volt TTL/CMOS logic
levels and/or the multi-drop RS-232 serial port. TCP/Telnet
control/monitoring with our optional
ESS-1, RS-232 to Ethernet adapter.
- Two SPDT relay outputs for remote channel status
-
Audio/signal switching via mechanical latching sealed relays utilizing
2-form-C bifurcated - crossbar silver alloy with gold overlay contacts.
-
BNC connectors are used for audio or signal I/O connections, and
removable euro-block screw terminal connectors are used for remote
control and status to
simplify wiring and service, euroblock mating plugs are supplied.
-
The power-up source selection feature allows the user to select which
source is active at power up, including the last source selected.
- If power is lost, the last selected channel is passed to the output.
- Fully RFI proofed.
- Surge protected internal power supply, domestic power supply provided. Optional CE 240 Vac 50-60 Hz power supply available.
- Up to three units may be mounted on the optional RA-1 rack shelf. Desk top and wall mounting is also possible.
