Intercom Phone Bridge

Intercom Phone Bridge
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Intercom Phone Bridge

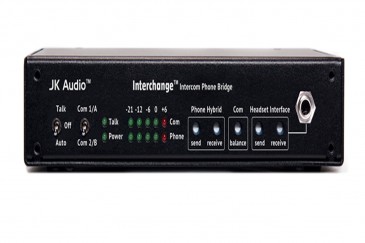

The Interchange Intercom Phone Bridge from JK Audio is a professional half-rack interface designed to provide remote access to your party-line intercom through the JK Audio Innkeeper Series Digital Hybrids (sold separately). This unit provides a 4-wire audio interface and remote control connection to the JK Audio innkeeper LTD, innkeeper 1x/1rx, or innkeeper 2 Digital Hybrid (all sold separately). The front panel headset interface jack allows easy connection of your cell phone, tablet, or computer, thereby enabling remote access through a wireless phone or a conferencing app.

This intercom phone bridge contains a sophisticated intercom hybrid in a low noise pro audio design. The Listen-Always design enables both the phone hybrid / 4-wire connection and the cell phone headset interface to monitor the intercom. It features a Listen mode, which is a high-impedance bridging tap on the intercom line. This unit also includes a Talk mode that is enabled via a front panel switch, either Off, On, or Auto. Auto follows the phone hybrid Auto-Answer mode. The Talk mode uses a solid-state relay to properly couple Talk audio from the phone line and cell phone interfaces, to the intercom channel.

Features:

-Intercom Channel
-Male & Female 3-pin XLR
-Output Level -10 dBu (250 mV RMS) nominal
-Terminating Impedance 200 ohms
-Bridging Impedance >15k ohms
-Pin 1 Common
-Pin 2 Audio + 30 VDC ( +12 VDC min ) 50 mA
-Pin 3 Audio
-Line In
-Balanced Female XLR
-Impedance 20k ohms
-Frequency Response 50 Hz - 20 kHz
-Level 500 mV RMS (-4 dBu nom, +12 dBu max)
-Line Out
-Balanced Female XLR
-Impedance 200 ohms
-Frequency Response 50 Hz - 20 kHz
-Level 500 mV RMS (-4 dBu nom, +12 dBu max)
