Analog to HD/SD-SDI Mini-Converter

Lebih Lengkap Mengenai Analog to HD/SD-SDI Mini-Converter

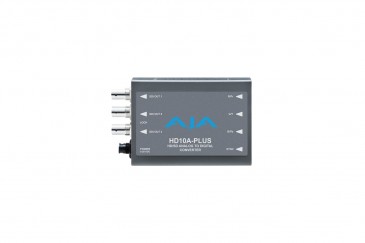

The HD10A-Plus Analog to HD/SD-SDI Mini-Converter from AJA allows you to convert video from analog devices, such as cameras, VTRs, or computers with HD RGB graphics, to digital video and incorporate these devices into modern digital workflows. This high-quality 10-bit analog to digital video converter accepts HD YPbPr or RGB component signals and outputs three duplicated SDI signals.

The HD10A-Plus supports a wide variety of analog input signals. It accepts HD YPbPr or RGB component at resolutions of 1080psf, 1080i, and 720p with internal or external sync. There is also an SD mode for NTSC/PAL component, composite, and S-Video input signals. 10-bit processing ensures a high quality conversion and output.

The device can be easily configured using external DIP switches, and its compact size and low 4 watt power consumption makes it effective for use on-set or in AV installations. A universal 5 VDC power supply comes included.
