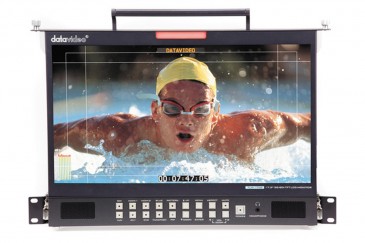

17.3" HD/SD TFT LCD Monitor - 1U Foldable Rackmount Tray Unit

17.3" HD/SD TFT LCD Monitor - 1U Foldable Rackmount Tray Unit
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 17.3" HD/SD TFT LCD Monitor - 1U Foldable Rackmount Tray Unit

The Datavideo TLM-170GM 17.3" 3G-SDI & HDMI TFT LCD Monitor - 1RU Foldable Rackmount Tray Unit lets you confidently monitor your video live in the field, in the studio, or back in editing suite. It features a resolution of 1600 x 900, supports formats up to 1080p60, and has a variety of inputs to fit in your existing workflow. Inputs include 3G/HD/SD-SDI, HDMI, component, and composite video, as well as RCA analog audio. SDI and HDMI embedded audio is supported. To send your video signals to additional devices, SDI and composite loop through outputs are provided.

The monitor has an on-screen menu, which allows for control and set up of brightness, contrast, saturation, hue, sharpness, color temperature, and picture-in-picture. The menus can also be used to display onscreen overlays including frame markers, center point, and embedded SDI time code and monitor title. Menu navigation and control buttons are located on the front panel. The device can also be controlled by your PC via an Ethernet connection. Additional features include a tally input and bi-color indicator lights, and a USB 2.0 port for firmware updates.

Features:

-Signal System NTSC, PAL
-Screen Size 17.3" TFT LCD
-Resolution 1600 x 900
-Brightness 220 cd/m²
-Contrast Ratio 650:1
-Viewing Angle
Top: 20°
Bottom: 45°
Left: 45°
Right: 45°
-White Balance 6500K, 9300K, Custom
-Video Inputs:
2 x HDMI (Ver. 1.3)
1 x 3G/HD/SD-SDI, BNC
1 x Component (3x BNC connectors)
2 x Composite, BNC
-Video Loop Output:
1 x HD/SD-SDI
1 x Composite
-SDI Formats Supported:
SMPTE 425M A/B
1080p (60/59.94/50/30/25/24)
1080i (60/59.94/50)
SMPTE 296M
1080p (60/59.94/50)
SMPTE 125M
480i (59.94)
ITU-R BT.656
576i (50)
-Audio Input Mono audio inputs that correspond to the analog video inputs (RCA connectors):
2 x Composite
1 x YUV
Audio Output Speaker cable output connections (L-, L+, R-, R+), Max. 5V p - p (2 W)
1 x 3.5 mm headphone jack
-Built-in speakers
-Tally Input 1 x 3.5 mm
-Tally Indicators Live (Red)
-Cued (Amber)
-Remote Control Yes
-USB 1 x USB 2.0
-Network 1 x LAN remote control, RJ-45
-Operating Temperature 32 to 122°F (0 to 50°C)
-Humidity Less than 90%
-Power Requirements 12 VDC 5.0 A, 110/220 VAC
-Power Consumption 15 W
