Studio Switcher Kit

Studio Switcher Kit
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Studio Switcher Kit

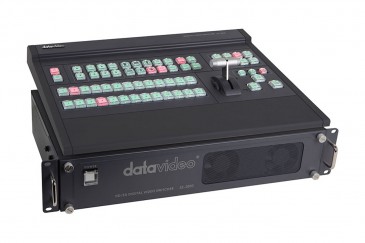

The Datavideo SE-2800 Studio Switcher Kit from B&H features the SE-2800 8-channel live event switcher, which accepts 8 sources in up to 1080i50/60 resolution via menu-selectable combinations of SDI, HDMI, and CV inputs. It can also be upgraded to support 12 inputs.

The kit also includes a 1RU holder for the switcher and the HDR-70 HDD Recorder, ITC-100 8-User Wired Intercom System, tally cable, and four 50 ft SDI cables. The Intercom System includes 8 beltpacks, 8 headsets, and 8 tally lights

The HDR-70 records NTSC and PAL signals in SD or HD and features one SD/HD-SDI video input/output, and two mini-XLR audio inputs/outputs. It records to 2.5" HDDs or SSDs via a removable drive caddy. It features selectable color sampling ratio and data rate settings.

Features:

Connections:
-Video Inputs (Menu Selectable):
8x HD/SD-SDI or
6x HD/SD-SDI + 2x HDMI or
4x HD/SD-SDI + 4x CV or
4x HD/SD-SDI + 2x CV + 2x HDMI or
2x HD/SD-SDI + 4x CV + 2x HDMI
-Video Outputs:
2x HDMI (Multi-Preview)
3x SD/HD-SDI
-Audio Inputs :
4x Analog Balanced XLR
-Audio Outputs :
2x Analog Balanced XLR
-Resolutions Accepted Resolutions:
1080i 50/60
576i 50
480i 59.94/60
-Control 1x RS-422
-Tally 15-pin D-Sub
